681M7W2203L141

Active

NorComp Inc.

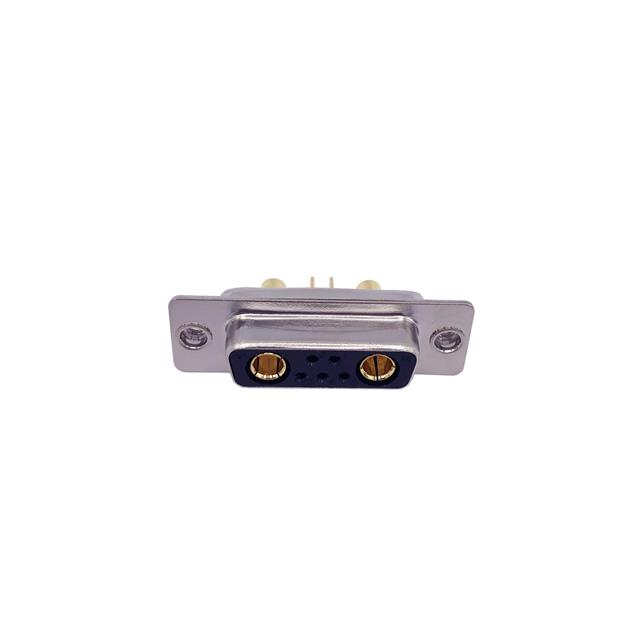

CONN D-SUB RCPT 7P PNL MNT SLDR

681M7W2203L141

Active

NorComp Inc.

CONN D-SUB RCPT 7P PNL MNT SLDR

Description Specifications Series Pricing CAD Documents

Description

General part information

681M7W2 Series

7 (5 + 2 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector

Technical Specifications

Parameters and characteristics for this part

Specification	681M7W2203L141

Color	Black
Connector Layout	DA, A
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Copper Alloy
Contact Type	Signal, Power
Current Rating Options	40A, 5A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Board Lock
Finish	Nickel Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions (Normal)	5
Number of Positions (Power)	2
Number of Positions (Total)	7
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Part Code	7W2
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	250 V

681M7W2 Series

Part	Current Rating Options	Mounting Type	Flange Feature	Connector Type	Features	Contact Finish Thickness (string set options)	Contact Finish Thickness	Material Flammability Rating	Shell Material	Finish	Number of Rows	Contact Finish	Connector Style	Contact Type	Termination	Number of Positions (Total)	Number of Positions (Normal)	Number of Positions (Power)	Shell Size	Part Code	Connector Layout	Contact Material	Color	Contact Form	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Voltage Rating
NorComp Inc. 681M7W2103L011	40A 5A	Panel Mount Through Hole	Board Side (4-40)	Male Pins Plug	Grounding Indents	Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	125 °C	-55 °C
NorComp Inc. 681M7W2203L141	40A 5A	Panel Mount Through Hole	Board Side (4-40)	Female Sockets Receptacle	Board Lock	Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	125 °C	-55 °C	250 V
NorComp Inc. 681M7W2103L101	40A 5A	Panel Mount Through Hole	Housing Shell (Unthreaded)	Male Pins Plug	Grounding Indents	Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	125 °C	-55 °C	250 V
NorComp Inc. 681M7W2203L001	40A 5A	Panel Mount Through Hole	Housing Shell (Unthreaded)	Female Sockets Receptacle		Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	125 °C	-55 °C
NorComp Inc. 681M7W2103L001	40A 5A	Panel Mount Through Hole	Housing Shell (Unthreaded)	Male Pins Plug	Grounding Indents	Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	155 °C	-55 °C
NorComp Inc. 681M7W2203L101	40A 5A	Panel Mount Through Hole	Housing Shell (Unthreaded)	Female Sockets Receptacle		Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	125 °C	-55 °C	250 V
NorComp Inc. 681M7W2103L151	40A 5A	Panel Mount Through Hole	Board Side (4-40)	Male Pins Plug	Board Lock Grounding Indents	Flash	Flash	UL94 V-0	Steel	Nickel Plated	2	Gold	Combo D-Sub	Power Signal	Solder	7	5	2	2	7W2	A DA	Copper Alloy	Black	Machined	Polybutylene Terephthalate (PBT)	125 °C	-55 °C	250 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

681M7W2203L141 | Datasheet
