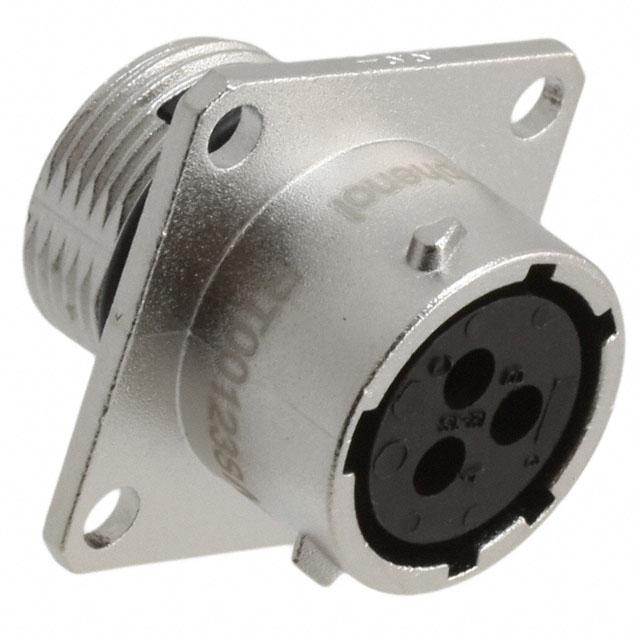

RT00123SNH
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG FMALE 3POS PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
RT00123SNH
ActiveAmphenol Sine Systems Corp
CONN RCPT HSNG FMALE 3POS PNL MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT00123SNH |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 12-3 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.70 | |
| 10 | $ 11.30 | |||
| 25 | $ 10.22 | |||
| 50 | $ 9.48 | |||
| 100 | $ 8.82 | |||
| 250 | $ 8.04 | |||
| 500 | $ 7.51 | |||
| 1000 | $ 7.03 | |||
Description
General part information
RT00123 Series
3 Position Circular Connector Receptacle Housing Panel Mount
