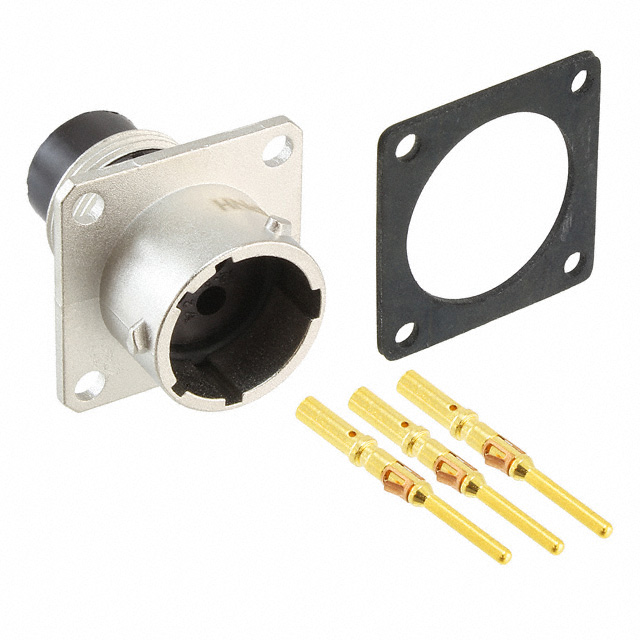

RT00123PNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 3POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN RCPT MALE 3POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	RT00123PNH-K

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Flange
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	12-3
Termination	Crimp
Voltage Rating	250 VAC

Part	Contact Finish - Mating	Mounting Feature	Orientation	Shell Size - Insert	Color	Shell Material	Contact Finish Thickness - Mating	Shell Finish	Connector Type	Voltage Rating	Primary Material	Ingress Protection	Current Rating (Amps)	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Type	Contact Shape	Material Flammability Rating	Housing Color	Note	Contact Type	Insert Material	Shielding	Contact Size	Features
Amphenol Sine Systems Corp RT00123PNH-K	Gold	Flange	N	12-3	Silver	Zinc Die Cast	Flash	Nickel	Male Pins Receptacle	250 VAC	Metal	IP67 - Dust Tight Waterproof	13 A	Bayonet Lock	-40 °C	105 ░C	Crimp
Amphenol Sine Systems Corp RT00123SNH		Flange	N	12-3		Zinc Alloy		Nickel	Receptacle Housing			IP67 - Dust Tight Waterproof		Bayonet Lock	-40 °C	105 ░C		For Female Sockets	Circular	UL94 V-0	Silver	Contacts Not Included	Crimp	Thermoplastic	Shielded	16
Amphenol Sine Systems Corp RT00123PNHEC03		Flange	N	12-3		Zinc Alloy		Nickel	Receptacle Housing		Metal	IP67 - Dust Tight Waterproof		Bayonet Lock	-40 °C	125 °C		For Male Pins	Circular	UL94 V-0	Silver	Contacts Not Included	Crimp	Thermoplastic	Shielded	16	Cap (Cover)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Crimp
