SDR-VL

Active

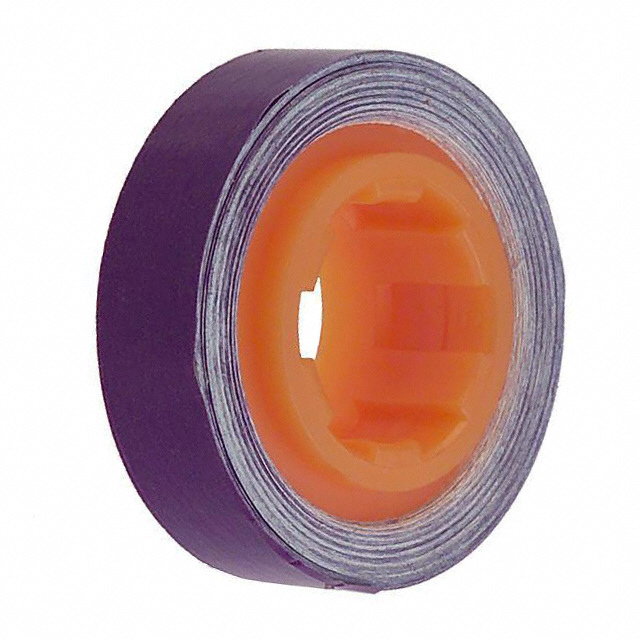

WIRE MARKER, SCOTCHCODE&TRADE; TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), VIOLET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ScotchCode™ Wire Marking Brochure +1

SDR-VL

Active

WIRE MARKER, SCOTCHCODE&TRADE; TAPE, COLOUR CODED, 5.46MM X 2.44M, PET (POLYESTER), VIOLET

Deep-Dive with AI

DocumentsDatasheet ScotchCode™ Wire Marking Brochure +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.35
		10	$ 7.03
		30	$ 6.39
		50	$ 6.07
		100	$ 5.75
		250	$ 5.43
		500	$ 5.11
		1000	$ 4.79
Newark	Each	10	$ 7.37
		25	$ 6.80
		50	$ 6.42
		100	$ 6.14
		250	$ 5.41
		500	$ 5.25
		1000	$ 4.46

Description

General part information

SDR Series

The SDR series ScotchCode™ Wire Marker Tape Refill Rolls are pre-printed with 6 numbers for every inch and is ideal for phase identification. This tape is also ideal for identification of terminal blocks/strips, wire in panel boards or a piece of switchgear. This thin and conformable tape meets ASTM D-1000 standard test methods, making it great for industrial electrical applications. It is compatible with the 3M STD ScotchCode tape dispenser that provides easy and ideal usage.

Documents

Technical documentation and resources

Datasheet

ScotchCode™ Wire Marking Brochure

Datasheet

Technical Data Sheet EN

Datasheet

Specification	SDR-VL	SDR Series

Cable Diameter [diameter]	Cut to Desired Diameter	Cut to Desired Diameter
Color	Violet	Green, Black, White, Brown, Violet, Gray, Yellow
Legend	Blank	Blank, B, K, T, W, L3, G, 3, T1, X, L, L1, 4, 7, 2
Legend	-	19 - 59
Legend	-	10 - 50
Legend	-	6
Legend	-	True
Material	Polyester	Polyester
Operating Temperature [Max]	121 °C	121 °C
Operating Temperature [Min]	-40 °C	-40 °C
Shelf Life	24 Months	24 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Size [x]	0.22 in	0.22 in
Size [x]	5.5 mm	5.5 mm
Size [y]	2.4 m	2.4 m
Size [y]	96 in	96 in
Type	Wire Marker, Tape	Wire Marker, Tape

Part	Size [y]	Size [x]	Size [x]	Size [y]	Shelf Life Start	Type	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Legend	Cable Diameter [diameter]	Color	Material
3M SDR-GN	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Green	Polyester
3M SDR-BK	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Black	Polyester
3M SDR-B	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	B	Cut to Desired Diameter	White	Polyester
3M SDR-BN	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	Blank	Cut to Desired Diameter	Brown	Polyester
3M SDR-K	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	K	Cut to Desired Diameter	White	Polyester
3M SDR-+(PLUS)	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C		Cut to Desired Diameter	White	Polyester
3M SDR-T	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	T	Cut to Desired Diameter	White	Polyester
3M SDR-W	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	W	Cut to Desired Diameter	White	Polyester
3M SDR-L3	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	L3	Cut to Desired Diameter	White	Polyester
3M SDR-G	2.4 m	0.22 in	5.5 mm	96 in	Date of Manufacture	Wire Marker, Tape	24 Months	-40 °C	121 °C	G	Cut to Desired Diameter	White	Polyester
