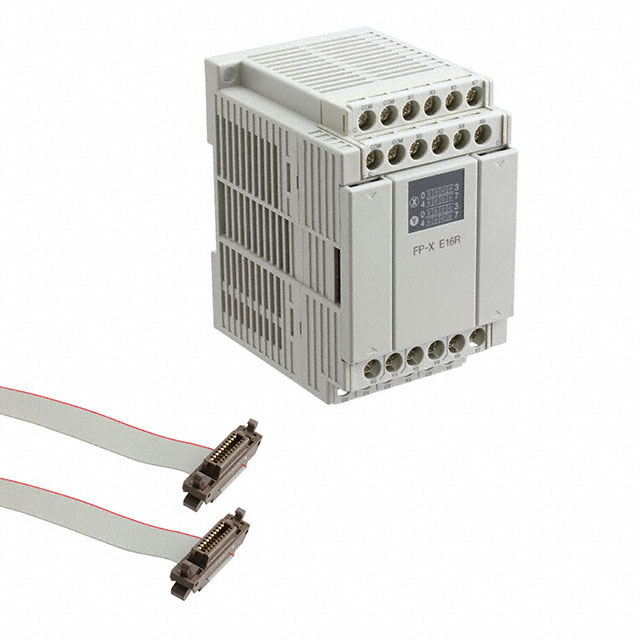

AFPX-E16R

Active

Panasonic Industrial Automation Sales

I/O MODULE 8 DIGITAL 8 RELAY

Search across all available documentation for this part.

Active

Panasonic Industrial Automation Sales

I/O MODULE 8 DIGITAL 8 RELAY

Technical Specifications

Parameters and characteristics for this part

Specification	AFPX-E16R

For Use With/Related Products	FP-X Series
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	8
Number of Inputs and Type [custom]	Digital
Number of Outputs and Type [custom]	Relay
Number of Outputs and Type [x]	8
Termination Style	Screw Terminal
Type	Input, Output (I/O) Module
Weight	0.43 lb
Weight	195.04 g

Part	For Use With/Related Products	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Weight	Weight	Termination Style	Type	Mounting Type	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Voltage - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Outputs and Type [x]	Number of Outputs and Type [custom]
Panasonic Industrial Automation Sales AFPX-E30TD	FP-X Series	14	Solid State	0.904 lb	410.05 g	Screw Terminal	Input Output (I/O) Module	DIN Rail	16	Digital	24 VDC
Panasonic Industrial Automation Sales AFPX-E30RD	FP-X Series	14	Relay	0.984 lb	450 g	Screw Terminal	Input Output (I/O) Module	DIN Rail	16	Digital	24 VDC
Panasonic Industrial Automation Sales AFPX-E30T	FP-X Series	14	Solid State	0.948 lb	430.01 g	Screw Terminal	Input Output (I/O) Module	DIN Rail	16	Digital		100 VAC	240 VAC
Panasonic Industrial Automation Sales AFPX-E30R	FP-X Series	14	Relay	1.1 lbs	499 g	Screw Terminal	Input Output (I/O) Module	DIN Rail	16	Digital		100 VAC	240 VAC
Panasonic Industrial Automation Sales AFPX-E16X	FP-X Series			0.419 lb	190.06 g	Screw Terminal	Input Module	DIN Rail	16	Digital
Panasonic Industrial Automation Sales AFPX-E16R	FP-X Series		Relay	0.43 lb	195.04 g	Screw Terminal	Input Output (I/O) Module	DIN Rail	8	Digital				8
Panasonic Industrial Automation Sales AFPX-E16T	FP-X Series		Solid State	0.397 lb	180.08 g	Screw Terminal	Input Output (I/O) Module	DIN Rail	8	Digital					8
Panasonic Industrial Automation Sales AFPX-EFP0	FP-X Series			0.143 lb	64.86 g		Input Output (I/O) Module	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Input, Output (I/O) Module DIN Rail
