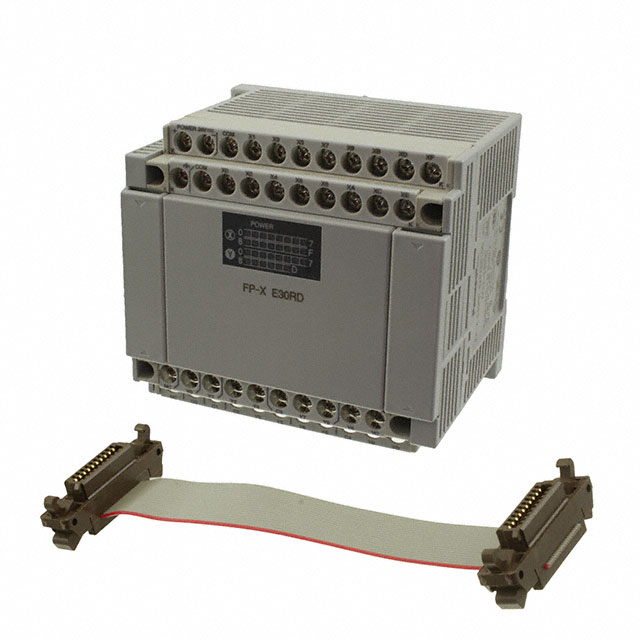

Specification	AFPX-E30RD

For Use With/Related Products	FP-X Series
Input Types	Digital
Mounting Type	DIN Rail
Number of Inputs	16
Number of Outputs	14
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Output Type	Relay
Termination Style	Screw Terminal
Type	Output (I/O) Module, Input
Voltage - Supply	24 VDC
Weight	0.984 lb

AFPX-E Series

Part	Weight	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Output Type	Number of Outputs	Number of Inputs	Input Types	For Use With/Related Products	Termination Style	Type	Voltage - Supply	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Control Side Connection	Length	Specifications	Process Side Connection
Panasonic Industrial Automation Sales AFPX-E30TD	0.904 lb	0 °C	55 °C	DIN Rail	Solid State	14	16	Digital	FP-X Series	Screw Terminal	Input Output (I/O) Module	24 VDC
Panasonic Industrial Automation Sales AFPX-E30RD	0.984 lb	0 °C	55 °C	DIN Rail	Relay	14	16	Digital	FP-X Series	Screw Terminal	Input Output (I/O) Module	24 VDC
Panasonic Industrial Automation Sales AFPX-E30T	0.948 lb	0 °C	55 °C	DIN Rail	Solid State	14	16	Digital	FP-X Series	Screw Terminal	Input Output (I/O) Module		100 VAC	240 VAC
Panasonic Industrial Automation Sales AFPX-E30R	1.1 lbs	0 °C	55 °C	DIN Rail	Relay	14	16	Digital	FP-X Series	Screw Terminal	Input Output (I/O) Module		100 VAC	240 VAC
Panasonic Industrial Automation Sales AFPX-E16X	0.419 lb	0 °C	55 °C	DIN Rail			16	Digital	FP-X Series	Screw Terminal	Input Module
Panasonic Industrial Automation Sales AFPX-E16R	0.43 lb	0 °C	55 °C	DIN Rail	Relay	8	8	Digital	FP-X Series	Screw Terminal	Input Output (I/O) Module
Panasonic Industrial Automation Sales AFPX-E16T	0.397 lb	0 °C	55 °C	DIN Rail	Solid State	8	8	Digital	FP-X Series	Screw Terminal	Input Output (I/O) Module
Panasonic Industrial Automation Sales AFPX-EFP0	0.143 lb	0 °C	55 °C	DIN Rail					FP-X Series		Input Output (I/O) Module
Panasonic Industrial Automation Sales AFPX-EC80									Panasonic FP Series						Rectangular Connector	2.62 ft	Interface	Rectangular Connector
