L1SP-RYL0002000000

Active

Lumileds

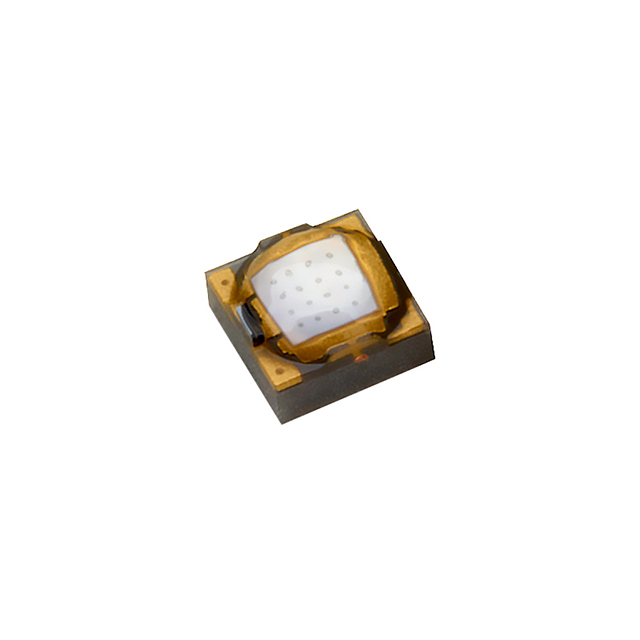

LED UNI-COLOR BLUE 455NM CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLUXEON SunPlus Series Brief Datasheet

L1SP-RYL0002000000

Active

Lumileds

LED UNI-COLOR BLUE 455NM CHIP LED 2-PIN SMD T/R

Deep-Dive with AI

DocumentsLUXEON SunPlus Series Brief Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.36
	Digi-Reel®	1	$ 2.36
	Tape & Reel (TR)	1000	$ 0.94
		2000	$ 0.89
		5000	$ 0.87
		10000	$ 0.86

Description

General part information

L1SP Series

LED Lighting Color LUXEON SunPlus 20 Horticulture Blue 450nm (Typ) 0707 (1919 Metric)

Documents

Technical documentation and resources

LUXEON SunPlus Series Brief

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	L1SP-RYL0002000000	L1SP Series

Color	Blue	Red, White, Blue
Current - Max [Max]	1.05 A	1.05 - 480 mA
Current - Test	350 mA	100 - 350 mA
Height - Seated (Max)	-	0.75 - 2.39 mm
Height - Seated (Max)	-	0.073 in
Height - Seated (Max)	-	1.85 mm
Height - Seated (Max) [Max]	1.5 mm	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "	0.03 - 0.094 in
Mounting Type	Surface Mount	Surface Mount
Package / Case	0707, 1919 Metric	3528 Metric, 3535 Metric, 0707, 1919 Metric
Package / Case	-	1411, 3-SMD, No Lead, 2-SMD, No Lead, 1414, 2-SMD, Flat Leads
Size / Dimension	-	3.45 mm
Size / Dimension	-	3.45 mm
Size / Dimension [x]	2 mm	0.136 - 3.5 mm
Size / Dimension [x]	0.079 in	0.079 - 0.138 "
Size / Dimension [y]	2 mm	0.136 - 3.4 mm
Size / Dimension [y]	0.079 in	0.079 - 0.134 in
Supplier Device Package	SMD	2835, 1414, 2-SMD, SMD
Temperature - Test	85 °C	85 °C
Thermal Resistance of Package	-	13 - 15 °C/W
Viewing Angle	165 °	115 - 165 °
Voltage - Forward (Vf) (Typ)	2.75 V	1.75 - 2.85 V
Wavelength	450 nm	450 nm
Wavelength	-	720 nm
Wavelength	-	740 nm

L1SP Series

LED LUXEON SUNPLS RED 730NM 2835

Part	Current - Test	Voltage - Forward (Vf) (Typ)	Color	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Viewing Angle	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Height - Seated (Max) [Max]	Temperature - Test	Height - Seated (Max)	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Wavelength
Lumileds L1SP-FRD0002800000	120 mA	2.15 V	Red	720 nm	740 nm	0.03 in	0.75 mm	15 °C/W	130 °	0.11 in	2.8 mm	0.138 "	3.5 mm	250 mA	Surface Mount	2835	1411	3528 Metric
Lumileds L1SP-FRD0002000000	350 mA	1.9 V	Red			0.059 "			162 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount		3-SMD, No Lead		1.5 mm	85 °C
Lumileds L1SP-PNK1002800000	120 mA	2.85 V	White			0.03 in	0.75 mm	13 °C/W	120 °	0.11 in	2.8 mm	0.138 "	3.5 mm	480 mA	Surface Mount	2835	1411	3528 Metric
Lumileds L1SP-FRD0002F00000	350 mA	1.9 V	Red						122 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount		2-SMD, No Lead			85 °C	0.073 in	1.85 mm
Lumileds L1SP-DRD0002F00000	350 mA	2.05 V	Red						122 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount		2-SMD, No Lead			85 °C	0.073 in	1.85 mm
Lumileds L1SP-DRD0203E00000		2.07 V	Red			0.094 "	2.39 mm		126 °		0.136 in		0.136 in	1.4 A	Surface Mount	1414	1414	3535 Metric					3.45 mm	3.45 mm
Lumileds L1SP-FRD00035R0000	100 mA	1.75 V	Red			0.031 "	0.8 mm		115 °	0.134 in	3.4 mm	0.138 "	3.5 mm	180 mA	Surface Mount	2-SMD	2-SMD, Flat Leads
Lumileds L1SP-RYL0002000000	350 mA	2.75 V	Blue			0.059 "			165 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount	SMD		0707, 1919 Metric	1.5 mm	85 °C					450 nm
