L1SP-FRD0002800000

Active

Lumileds

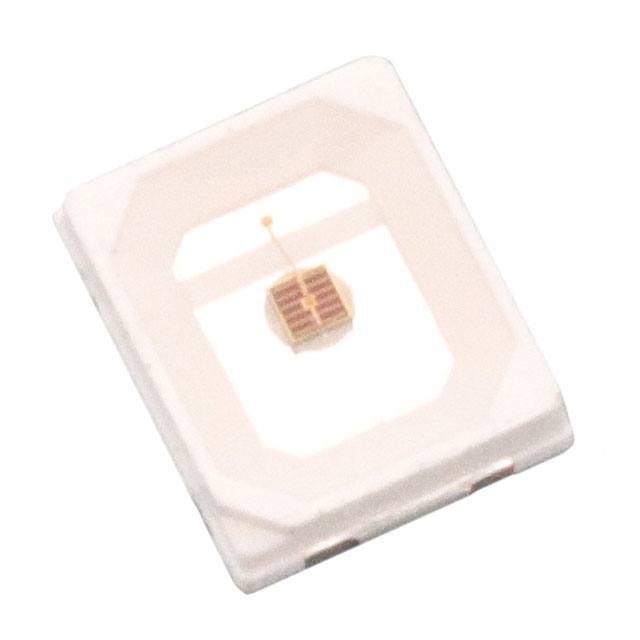

LED LUXEON SUNPLS RED 730NM 2835

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLUXEON SunPlus 2835 Line Brief Datasheet

L1SP-FRD0002800000

Active

Lumileds

LED LUXEON SUNPLS RED 730NM 2835

Deep-Dive with AI

DocumentsLUXEON SunPlus 2835 Line Brief Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.69
		10	$ 0.45
		100	$ 0.30
		1000	$ 0.23
		2000	$ 0.21
	Digi-Reel®	1	$ 0.69
		10	$ 0.45
		100	$ 0.30
		1000	$ 0.23
		2000	$ 0.21
	Tape & Reel (TR)	4000	$ 0.21
		8000	$ 0.19
		12000	$ 0.19
		28000	$ 0.19

Description

General part information

L1SP Series

LED Lighting Color LUXEON SunPlus 2835 Horticulture Red 730nm (720nm ~ 740nm) 1411 (3528 Metric)

Documents

Technical documentation and resources

LUXEON SunPlus 2835 Line Brief

Datasheet

Specification	L1SP-FRD0002800000	L1SP Series

Color	Red	Red, White, Blue
Current - Max [Max]	250 mA	1.05 - 480 mA
Current - Test	120 mA	100 - 350 mA
Height - Seated (Max)	-	1.5 mm
Height - Seated (Max)	-	0.073 in
Height - Seated (Max)	-	1.85 mm
Height - Seated (Max) [Max] [z]	0.03 in	0.03 - 0.094 in
Height - Seated (Max) [Max] [z]	0.75 mm	0.75 - 2.39 mm
Mounting Type	Surface Mount	Surface Mount
Package / Case	1411	1411, 3-SMD, No Lead, 2-SMD, No Lead, 1414, 2-SMD, Flat Leads
Package / Case	3528 Metric	3528 Metric, 3535 Metric, 0707, 1919 Metric
Size / Dimension	-	3.45 mm
Size / Dimension	-	3.45 mm
Size / Dimension [x]	0.138 "	0.079 - 0.138 "
Size / Dimension [x]	3.5 mm	0.136 - 3.5 mm
Size / Dimension [y]	0.11 in	0.079 - 0.134 in
Size / Dimension [y]	2.8 mm	0.136 - 3.4 mm
Supplier Device Package	2835	2835, 1414, 2-SMD, SMD
Temperature - Test	-	85 °C
Thermal Resistance of Package [diameter]	15 °C/W	13 - 15 °C/W
Viewing Angle	130 °	115 - 165 °
Voltage - Forward (Vf) (Typ)	2.15 V	1.75 - 2.85 V
Wavelength	-	450 nm
Wavelength [Max]	740 nm	740 nm
Wavelength [Min]	720 nm	720 nm

Part	Current - Test	Voltage - Forward (Vf) (Typ)	Color	Wavelength [Min]	Wavelength [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	Viewing Angle	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Height - Seated (Max) [Max]	Temperature - Test	Height - Seated (Max)	Height - Seated (Max)	Size / Dimension [x]	Size / Dimension [y]	Wavelength
Lumileds L1SP-FRD0002800000	120 mA	2.15 V	Red	720 nm	740 nm	0.03 in	0.75 mm	15 °C/W	130 °	0.11 in	2.8 mm	0.138 "	3.5 mm	250 mA	Surface Mount	2835	1411	3528 Metric
Lumileds L1SP-FRD0002000000	350 mA	1.9 V	Red			0.059 "			162 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount		3-SMD, No Lead		1.5 mm	85 °C
Lumileds L1SP-PNK1002800000	120 mA	2.85 V	White			0.03 in	0.75 mm	13 °C/W	120 °	0.11 in	2.8 mm	0.138 "	3.5 mm	480 mA	Surface Mount	2835	1411	3528 Metric
Lumileds L1SP-FRD0002F00000	350 mA	1.9 V	Red						122 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount		2-SMD, No Lead			85 °C	0.073 in	1.85 mm
Lumileds L1SP-DRD0002F00000	350 mA	2.05 V	Red						122 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount		2-SMD, No Lead			85 °C	0.073 in	1.85 mm
Lumileds L1SP-DRD0203E00000		2.07 V	Red			0.094 "	2.39 mm		126 °		0.136 in		0.136 in	1.4 A	Surface Mount	1414	1414	3535 Metric					3.45 mm	3.45 mm
Lumileds L1SP-FRD00035R0000	100 mA	1.75 V	Red			0.031 "	0.8 mm		115 °	0.134 in	3.4 mm	0.138 "	3.5 mm	180 mA	Surface Mount	2-SMD	2-SMD, Flat Leads
Lumileds L1SP-RYL0002000000	350 mA	2.75 V	Blue			0.059 "			165 °	0.079 in	2 mm	0.079 in	2 mm	1.05 A	Surface Mount	SMD		0707, 1919 Metric	1.5 mm	85 °C					450 nm
