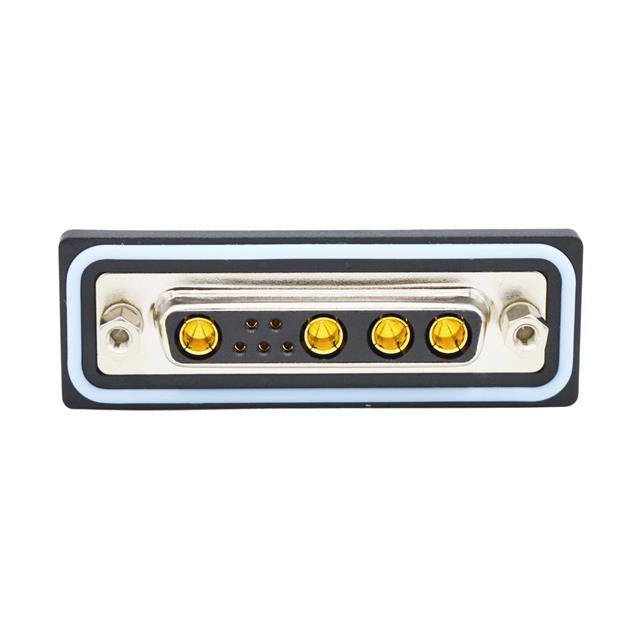

CDFV9W4213L411

Active

MH Connectors

CONN D-SUB RCPT 9P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDFV9W4213L411

Active

MH Connectors

CONN D-SUB RCPT 9P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CDFV9W4213L411

Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal and Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4
Termination	Solder

CDFV9W4 Series

Part	Dielectric Material	Ingress Protection	Termination	Contact Finish	Material Flammability Rating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Features	Connector Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size, Connector Layout	Connector Type	Contact Finish Thickness	Flange Feature	Shell Material, Finish	Contact Type	Number of Rows	Contact Material	Contact Finish Thickness	Contact Finish Thickness
MH Connectors CDFV9W4113L211	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug	Flash	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass
MH Connectors CDFV9W4213L211	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9		Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Receptacle Female Sockets	Flash	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass
MH Connectors CDFV9W4213L452	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9		Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Receptacle Female Sockets		Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass	0.76 Ám	30 Áin
MH Connectors CDFV9W4113L411	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug	Flash	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass
MH Connectors CDFV9W4113L251	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Board Lock Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug	Flash	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass
MH Connectors CDFV9W4213L411	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9		Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Receptacle Female Sockets	Flash	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass
MH Connectors CDFV9W4113L452	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Board Lock Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug		Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass	0.76 Ám	30 Áin
MH Connectors CDFV9W4113L451	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Board Lock Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug	Flash	Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass
MH Connectors CDFV9W4113L412	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug		Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass	0.76 Ám	30 Áin
MH Connectors CDFV9W4113L252	Polybutylene Terephthalate (PBT)	IP67 - Dust Tight Waterproof	Solder	Gold	UL94 V-0	4	5	9	Board Lock Grounding Indents	Combo D-Sub	Panel Mount Through Hole	-25 °C	85 °C	3 (DB B) - 9W4	Male Pins Plug		Female Screwlock (4-40) Mating Side	Nickel Plated Steel	Signal and Power	2	Brass	0.76 Ám	30 Áin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 15.42
		10	$ 11.88
		25	$ 10.75
		40	$ 10.75

Description

General part information

CDFV9W4 Series

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
