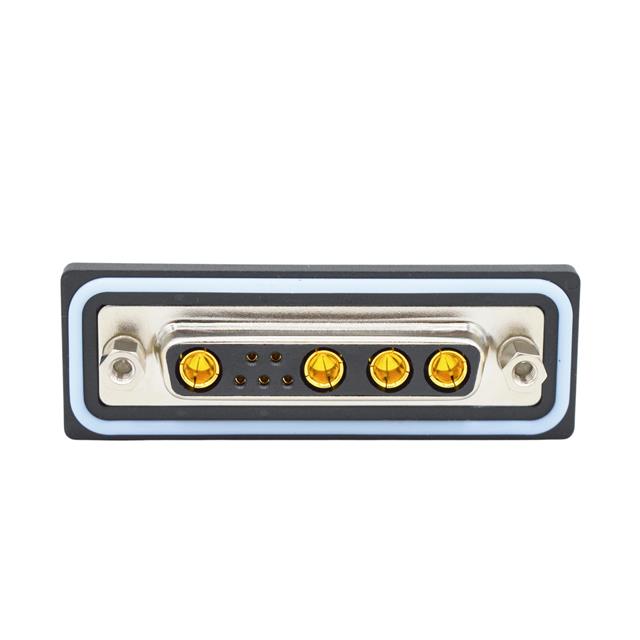

Specification	CDFV9W4213L211

Connector Layout	DB, B
Connector Style	Combo, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Form	Machined
Contact Material	Brass
Contact Type	Signal, Power
Dielectric Material	Polybutylene Terephthalate (PBT)
Finish	Nickel Plated
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole
Number of Positions (Normal)	5
Number of Positions (Power)	4
Number of Positions (Total)	9
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Part Code	9W4
Shell Material	Steel
Shell Size	3
Termination	Solder

CDFV9W4 Series

Part	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Rows	Features	Shell Material	Finish	Number of Positions (Power)	Number of Positions (Normal)	Number of Positions (Total)	Mounting Type	Connector Type	Connector Style	Shell Size	Connector Layout	Part Code	Termination	Contact Type	Flange Feature	Ingress Protection Description	Ingress Protection IP Rating	Contact Finish	Material Flammability Rating	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Dielectric Material	Contact Form
NorComp Inc. CDFV9W4113L211	0	Flash	Flash	2	Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4113L212	30 µin			2	Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4213L211	0	Flash	Flash	2		Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Female Sockets Receptacle	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4213L452	30 µin			2	Board Lock	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Female Sockets Receptacle	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4113L411	0	Flash	Flash	2	Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4113L251	0	Flash	Flash	2	Board Lock Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4213L411	0	Flash	Flash	2		Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Female Sockets Receptacle	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4113L452	30 µin			2	Board Lock Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4113L451	0	Flash	Flash	2	Board Lock Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
NorComp Inc. CDFV9W4113L412	30 µin			2	Grounding Indents	Steel	Nickel Plated	4	5	9	Panel Mount Through Hole	Male Pins Plug	Combo D-Sub	3	B DB	9W4	Solder	Power Signal	Female Screwlock (4-40) Mating Side	Dust Tight Waterproof	IP67	Gold	UL94 V-0	85 °C	-25 °C	Brass	Polybutylene Terephthalate (PBT)	Machined
