FN9280-6-06

Active

TE Connectivity Raychem Cable Protection

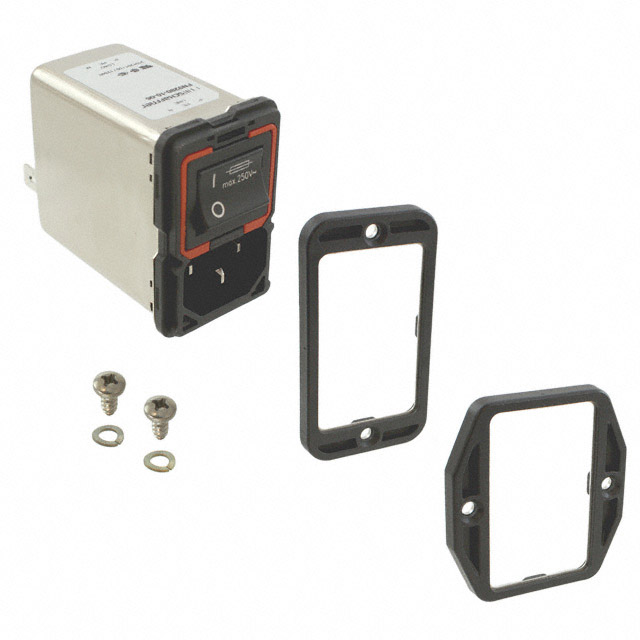

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FN9280-6-06

Active

TE Connectivity Raychem Cable Protection

PWR ENT MOD RCPT IEC320-C14 PNL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FN9280-6-06

Accomodates a Fuse	True
Approval Agency	UL, CQC, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Filter	6 A
Features	Front or Rear Side Mount
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.8 mm
Panel Cutout Dimensions [y]	47.1 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

FN9280 Series

Part	Fuse Holder, Drawer	Connector Type	Mounting Type	Material Flammability Rating	Ingress Protection	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Switch Features	Approval Agency	Termination	Termination	Termination	Connector Style	Filter Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Filter
TE Connectivity Raychem Cable Protection FN9280E-4-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount	2.5 mm	1 mm	0.098 in	0.039 in	Switch On-Off	CQC CSA ENEC UR	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	4 A
TE Connectivity Raychem Cable Protection FN9280B-6-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount					Switch On-Off	CQC CSA ENEC UL	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	6 A
TE Connectivity Raychem Cable Protection FN9280-6-100	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount					Switch On-Off	CQC CSA ENEC UL			Spring-Cage	IEC 320-C14	Filtered (EMI RFI) - Commercial	47.1 mm	28.8 mm	6 A
TE Connectivity Raychem Cable Protection FN9280B-6-100	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount					Switch On-Off	CQC CSA ENEC UL			Spring-Cage	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	6 A
TE Connectivity Raychem Cable Protection FN9280B-4-100	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount					Switch On-Off	CQC CSA ENEC UL			Spring-Cage	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	4 A
TE Connectivity Raychem Cable Protection FN9280EB-4-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount	2.5 mm	1 mm	0.098 in	0.039 in	Switch On-Off	CQC CSA ENEC UR	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	4 A
TE Connectivity Raychem Cable Protection FN9280E-10-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount	2.5 mm	1 mm	0.098 in	0.039 in	Switch On-Off	CQC CSA ENEC UR	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	10 A
TE Connectivity Raychem Cable Protection FN9280-10-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount					Switch On-Off	CQC CSA ENEC UL	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial	47.1 mm	28.8 mm	10 A
TE Connectivity Raychem Cable Protection FN9280EB-6-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount	2.5 mm	1 mm	0.098 in	0.039 in	Switch On-Off	CQC CSA ENEC UR	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial Medical	47.1 mm	28.8 mm	6 A
TE Connectivity Raychem Cable Protection FN9280-6-06	Fuse Holder Twin Fused	Receptacle Male Blades - Module	Flange Panel Mount	UL94 V-2	IP40	Front or Rear Side Mount					Switch On-Off	CQC CSA ENEC UL	0.25 in	6.3 mm	Quick Connect	IEC 320-C14	Filtered (EMI RFI) - Commercial	47.1 mm	28.8 mm	6 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.03
		10	$ 34.84
		25	$ 31.61
		50	$ 29.43
		100	$ 27.45
		250	$ 25.12

Description

General part information

FN9280 Series

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
