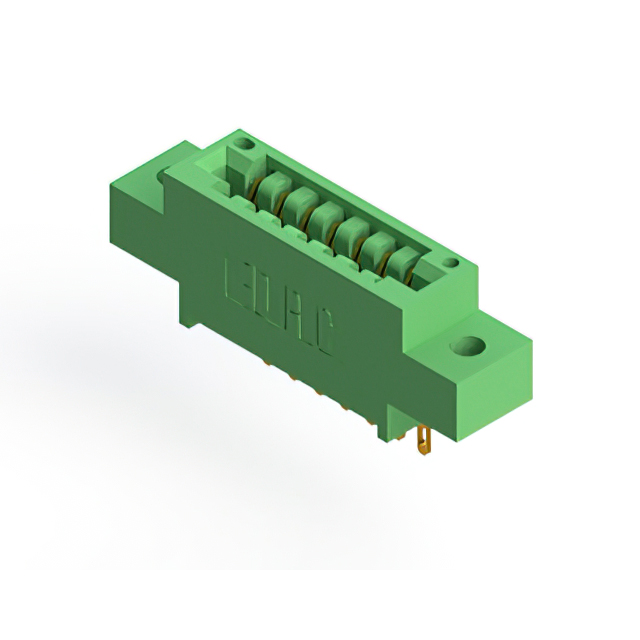

846-007-500-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 7POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

846-007-500-602

Active

EDAC Inc.

CONN EDGE SGL FMALE 7POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	846-007-500-602

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	7
Number of Positions/Bay/Row [custom]	7
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1

846-007 Series

Part	Pitch [x]	Pitch [x]	Mounting Type	Read Out	Number of Positions	Number of Positions/Bay/Row [custom]	Termination	Number of Rows	Contact Material	Termination Rows	Card Type	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 846-007-559-101	0.125 in	3.18 mm	Through Hole Right Angle	Single	7	7	Solder	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám
EDAC Inc. 846-007-522-112	0.125 in	3.18 mm	Through Hole	Single	7	7	Solder	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 846-007-500-602	0.125 in	3.18 mm	Through Hole	Single	7	7	Solder Eyelet(s)	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám				3.25 mm	0.128 in
EDAC Inc. 846-007-541-107	0.125 in	3.18 mm	Through Hole	Single	7	7	Wire Wrap	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-007-559-107	0.125 in	3.18 mm	Through Hole Right Angle	Single	7	7	Solder	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám		Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 846-007-520-612	0.125 in	3.18 mm	Through Hole	Single	7	7	Solder	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám		Side Mount Opening Unthreaded		3.25 mm	0.128 in
EDAC Inc. 846-007-540-101	0.125 in	3.18 mm	Through Hole	Single	7	7	Wire Wrap	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám
EDAC Inc. 846-007-559-612	0.125 in	3.18 mm	Through Hole Right Angle	Single	7	7	Solder	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám		Side Mount Opening Unthreaded		3.25 mm	0.128 in
EDAC Inc. 846-007-500-607	0.125 in	3.18 mm	Through Hole	Single	7	7	Solder Eyelet(s)	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám		M3 Threaded Insert Top Mount Opening
EDAC Inc. 846-007-541-108	0.125 in	3.18 mm	Through Hole	Single	7	7	Wire Wrap	1	Copper Alloy	1	Non Specified - Single Edge	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	Green	Female	125 °C	-40 °C	Diallyl Phthalate (DAP)	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 67.10
Newark	Each	1	$ 77.45
		100	$ 56.18
		250	$ 45.27
		500	$ 33.95
		1000	$ 20.88

Description

General part information

846-007 Series

7 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
