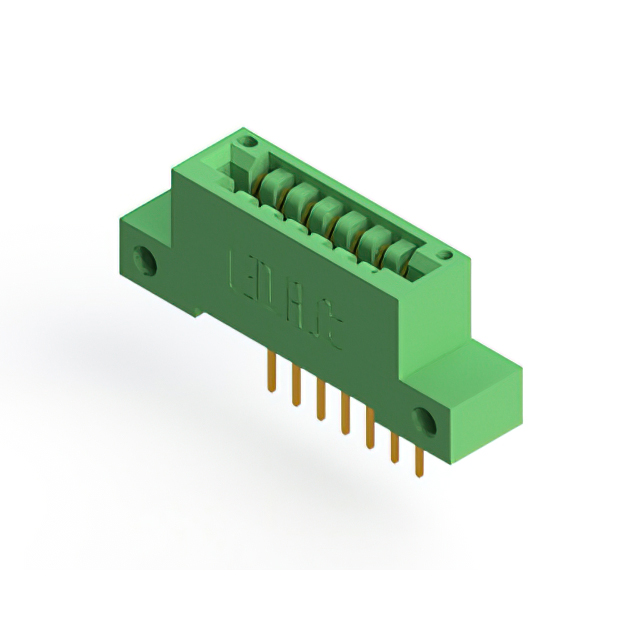

846-007-522-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-007-522-112
ActiveEDAC Inc.
CONN EDGE SGL FMALE 7POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-007-522-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
846-007 Series
| Part | Pitch [x] | Pitch [x] | Mounting Type | Read Out | Number of Positions | Number of Positions/Bay/Row [custom] | Termination | Number of Rows | Contact Material | Termination Rows | Card Type | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Color | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Material - Insulation | Contact Finish Thickness | Contact Finish Thickness | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole Right Angle | Single | 7 | 7 | Solder | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Solder | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | ||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Solder Eyelet(s) | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | |||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Wire Wrap | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole Right Angle | Single | 7 | 7 | Solder | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Flush Mount M3 Threaded Insert Top Opening | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Solder | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Wire Wrap | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole Right Angle | Single | 7 | 7 | Solder | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | Side Mount Opening Unthreaded | 3.25 mm | 0.128 in | ||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Solder Eyelet(s) | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | M3 Threaded Insert Top Mount Opening | ||||
EDAC Inc. | 0.125 in | 3.18 mm | Through Hole | Single | 7 | 7 | Wire Wrap | 1 | Copper Alloy | 1 | Non Specified - Single Edge | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Green | Female | 125 °C | -40 °C | Diallyl Phthalate (DAP) | 10 Áin | 0.25 Ám | 4-40 Flush Mount Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-007 Series
7 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
Documents
Technical documentation and resources
