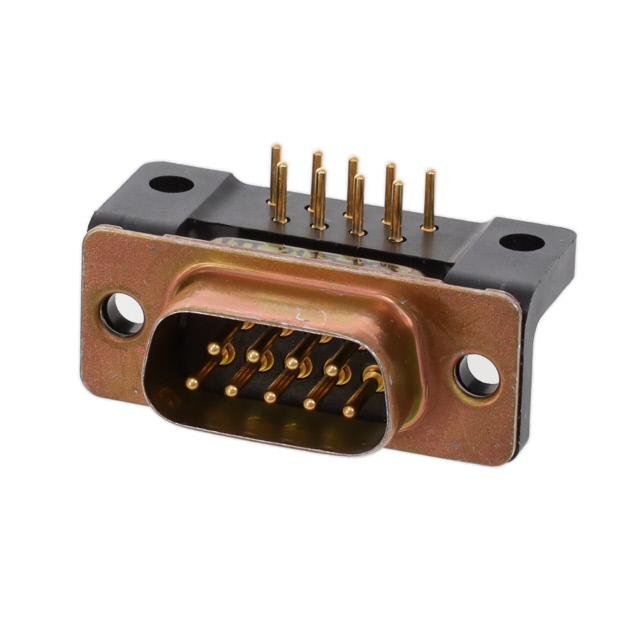

M24308/24-25F
ActiveITT Cannon, LLC
D SUB CONNECTOR, 9 CONTACTS, PLUG, SOLDER, DE, MIL-DTL-24308 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M24308/24-25F |
|---|---|
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Type | Signal |
| Current Rating (Amps) | 7.5 A |
| Dielectric Material | Polyester |
| Features | Mounting Brackets |
| Flange Feature | Housing/Shell (Unthreaded) |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Yellow Chromate Plated Cadmium, Steel |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 2 | $ 31.89 | |
| 10 | $ 15.25 | |||
| 20 | $ 13.17 | |||
| Digikey | Bag | 1 | $ 19.56 | |
| 10 | $ 18.97 | |||
| 25 | $ 18.40 | |||
| 50 | $ 17.86 | |||
| 100 | $ 17.12 | |||
| 250 | $ 16.88 | |||
| 500 | $ 16.43 | |||
| 1000 | $ 15.80 | |||
| Bulk | 1 | $ 30.14 | ||
| 10 | $ 23.27 | |||
| 25 | $ 21.08 | |||
| 50 | $ 19.60 | |||
| 100 | $ 18.27 | |||
| 250 | $ 16.69 | |||
| 500 | $ 15.63 | |||
| Tray | 1 | $ 21.08 | ||
| 10 | $ 18.27 | |||
| 25 | $ 17.32 | |||
| 40 | $ 17.07 | |||
| 80 | $ 15.06 | |||
| 230 | $ 14.06 | |||
| 440 | $ 13.75 | |||
| Newark | Each | 100 | $ 20.27 | |
| 250 | $ 19.00 | |||
Description
General part information
M24308/24 Series
9 Position D-Sub Plug, Male Pins Connector
