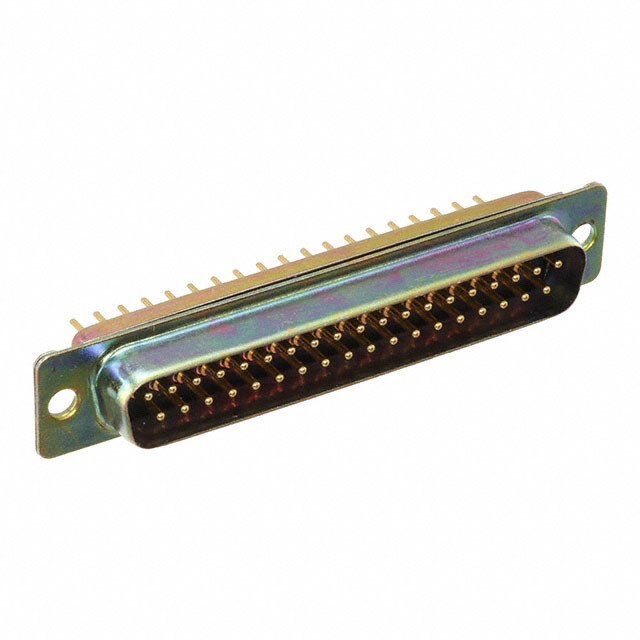

M24308/24-10Z

Active

ITT Cannon, LLC

CONN DSUB PLUG 37POS PNL MNT SLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M24308/24-10Z

Active

ITT Cannon, LLC

CONN DSUB PLUG 37POS PNL MNT SLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M24308/24-10Z

Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polyester
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Through Hole, Panel Mount
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Steel, Yellow Chromate Plated Zinc
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

M24308/24 Series

Part	Contact Finish	Shell Material, Finish	Current Rating (Amps)	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Rows	Flange Feature	Connector Type	Dielectric Material	Connector Style	Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Contact Type	Shell Size, Connector Layout	Shell Size, Connector Layout
ITT Cannon, LLC M24308/24-43Z	Gold	Steel Yellow Chromate Plated Zinc	7.5 A	DE E	1	-55 °C	150 °C	Mounting Brackets	2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	9	Panel Mount Right Angle Through Hole	Signal
ITT Cannon, LLC M24308/24-57F	Gold	Steel Yellow Chromate Plated Cadmium	7.5 A	B DB	3	-55 °C	150 °C	Mounting Brackets	2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm		Panel Mount Right Angle Through Hole	Signal
ITT Cannon, LLC M24308/24-28Z	Gold	Steel Yellow Chromate Plated Zinc	7.5 A			-55 °C	150 °C	Mounting Brackets	2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	37	Panel Mount Right Angle Through Hole	Signal	4 (DC C)
ITT Cannon, LLC M24308/24-10Z	Gold	Steel Yellow Chromate Plated Zinc	7.5 A			-55 °C	150 °C		2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	37	Panel Mount Through Hole	Signal	4 (DC C)
ITT Cannon, LLC M24308/24-21Z	Gold	Steel Yellow Chromate Plated Zinc	7.5 A	B DB	3	-55 °C	150 °C		2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm		Panel Mount Through Hole	Signal
ITT Cannon, LLC M24308/24-25Z	Gold	Steel Yellow Chromate Plated Zinc	7.5 A	DE E	1	-55 °C	150 °C	Mounting Brackets	2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	9	Panel Mount Right Angle Through Hole	Signal
ITT Cannon, LLC M24308/24-16F	Gold	Steel Yellow Chromate Plated Cadmium	7.5 A			-55 °C	125 °C	Shielded	2	Housing/Shell (Unthreaded)	Male Pins Plug	Thermoplastic	D-Sub	Solder	50 µin	1.27 µm	37	Panel Mount Through Hole	Signal	4 (DC C)
ITT Cannon, LLC M24308/24-1Z	Gold	Steel Yellow Chromate Plated Zinc	7.5 A	DE E	1	-55 °C	150 °C		2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	9	Panel Mount Through Hole	Signal
ITT Cannon, LLC M24308/24-5F	Gold	Steel Yellow Chromate Plated Cadmium	7.5 A			-55 °C	150 °C		3	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	50	Panel Mount Through Hole	Signal		5
ITT Cannon, LLC M24308/24-25F	Gold	Steel Yellow Chromate Plated Cadmium	7.5 A	DE E	1	-55 °C	150 °C	Mounting Brackets	2	Housing/Shell (Unthreaded)	Male Pins Plug	Polyester	D-Sub	Solder	50 µin	1.27 µm	9	Panel Mount Right Angle Through Hole	Signal

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 44.26
		10	$ 40.62
		25	$ 39.06
		25	$ 25.27
		50	$ 37.75
		100	$ 35.67
		250	$ 34.63

Description

General part information

M24308/24 Series

37 Position D-Sub Plug, Male Pins Connector
