02S119-K00E3

Active

Rosenberger

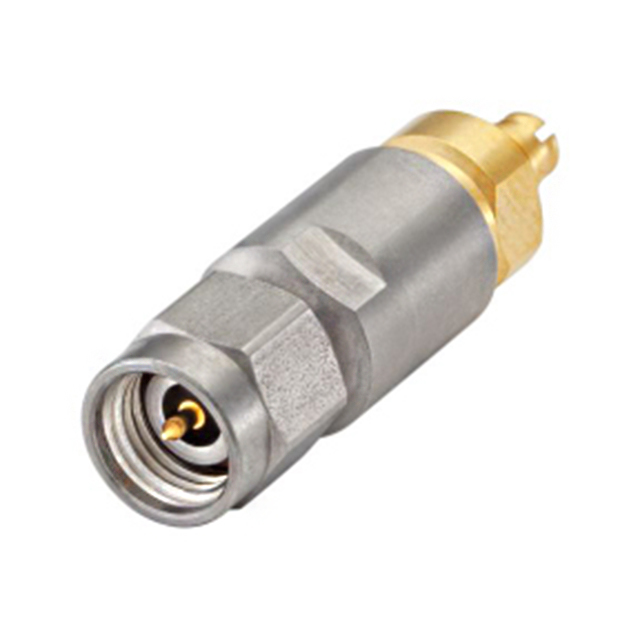

PRECISION 2.92/SMP ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92/SMP ADAPTER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To SMP Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	02S119-K00E3	02S119 Series

Accessory Type	-	Calibration Adapter
Adapter Series	SMP to RPC-2.92	SMP to RPC-2.92
Adapter Type	Plug to Jack	Plug to Jack, Plug to Plug
Body Finish	Gold	Gold
Body Material	Beryllium Copper	Beryllium Copper
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	-	Male to Male
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	Female Socket, SMP Jack	Female Socket, SMP Jack, SMP Plug
Dielectric Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Features	-	Limited Detent
For Use With/Related Products	-	Network Analyzer
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.32 dB	0.32 dB
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	26 - 85 °C
Operating Temperature [Min]	-40 °C	-40 - 20 °C
Specifications	-	2.92 Plug, SMP Plug
Style	Straight	Straight
Type	-	Specialized

PRECISION 2.92/SMP ADAPTER

Part	Insertion Loss	Impedance	Conversion Type	Mating Cycles	Convert From (Adapter End)	Adapter Type	Body Finish	Body Material	Style	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Dielectric Material	Center Contact Material	Adapter Series	Frequency - Max [Max]	Type	Accessory Type	Specifications	For Use With/Related Products	Center Gender	Features
Rosenberger 02S119-K00E3	0.32 dB	50 Ohms	Between Series	500	2.92 mm	Plug to Jack	Gold	Beryllium Copper	Straight	Gold	Female Socket, SMP Jack	85 °C	-40 °C	Snap-On, Threaded	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Beryllium Copper	SMP to RPC-2.92	40 GHz
Rosenberger 02S119-S20D3																				Specialized	Calibration Adapter	2.92 Plug, SMP Plug	Network Analyzer
Rosenberger 02S119-S00E3		50 Ohms	Between Series	500	2.92 mm	Plug to Plug	Gold	Beryllium Copper	Straight	Gold	Female Socket, SMP Plug	26 °C	20 °C	Snap-On, Threaded	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Beryllium Copper	SMP to RPC-2.92	40 GHz					Male to Male	Limited Detent
