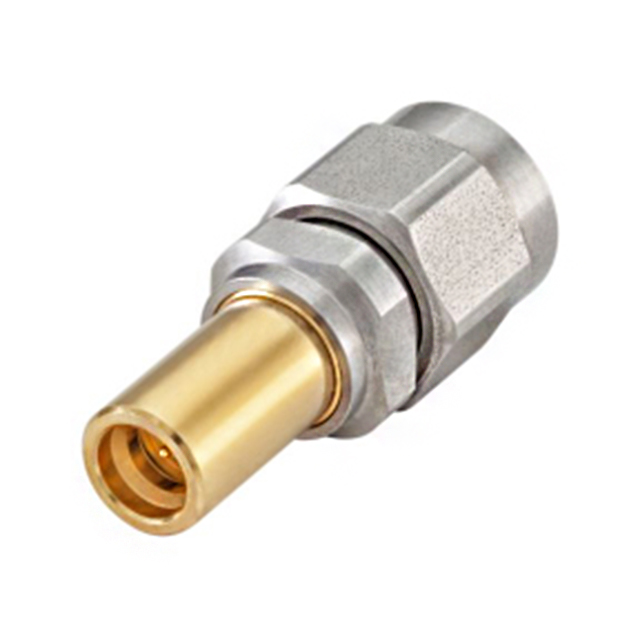

02S119-S20D3

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 CALIBRATION ADAPT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02S119-S20D3	02S119 Series

Accessory Type	Calibration Adapter	Calibration Adapter
Adapter Series	-	SMP to RPC-2.92
Adapter Type	-	Plug to Jack, Plug to Plug
Body Finish	-	Gold
Body Material	-	Beryllium Copper
Center Contact Material	-	Beryllium Copper
Center Contact Plating	-	Gold
Center Gender	-	Male to Male
Conversion Type	-	Between Series
Convert From (Adapter End)	-	2.92 mm
Convert To (Adapter End)	-	Female Socket, SMP Jack, SMP Plug
Dielectric Material	-	Polyetheretherketone (PEEK)
Fastening Type	-	Threaded, Snap-On
Features	-	Limited Detent
For Use With/Related Products	Network Analyzer	Network Analyzer
Frequency - Max	-	40 GHz
Impedance	-	50 Ohms
Insertion Loss	-	0.32 dB
Mating Cycles	-	500
Mounting Type	-	Free Hanging (In-Line)
Operating Temperature	-	26 - 85 °C
Operating Temperature	-	-40 - 20 °C
Specifications	2.92 Plug, SMP Plug	2.92 Plug, SMP Plug
Style	-	Straight
Type	Specialized	Specialized

PRECISION 2.92/SMP ADAPTER

Part	Insertion Loss	Impedance	Conversion Type	Mating Cycles	Convert From (Adapter End)	Adapter Type	Body Finish	Body Material	Style	Center Contact Plating	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Dielectric Material	Center Contact Material	Adapter Series	Frequency - Max [Max]	Type	Accessory Type	Specifications	For Use With/Related Products	Center Gender	Features
Rosenberger 02S119-K00E3	0.32 dB	50 Ohms	Between Series	500	2.92 mm	Plug to Jack	Gold	Beryllium Copper	Straight	Gold	Female Socket, SMP Jack	85 °C	-40 °C	Snap-On, Threaded	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Beryllium Copper	SMP to RPC-2.92	40 GHz
Rosenberger 02S119-S20D3																				Specialized	Calibration Adapter	2.92 Plug, SMP Plug	Network Analyzer
Rosenberger 02S119-S00E3		50 Ohms	Between Series	500	2.92 mm	Plug to Plug	Gold	Beryllium Copper	Straight	Gold	Female Socket, SMP Plug	26 °C	20 °C	Snap-On, Threaded	Free Hanging (In-Line)	Polyetheretherketone (PEEK)	Beryllium Copper	SMP to RPC-2.92	40 GHz					Male to Male	Limited Detent

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 1005.48

General part information

Specialized Calibration Adapter for use with Network Analyzer
