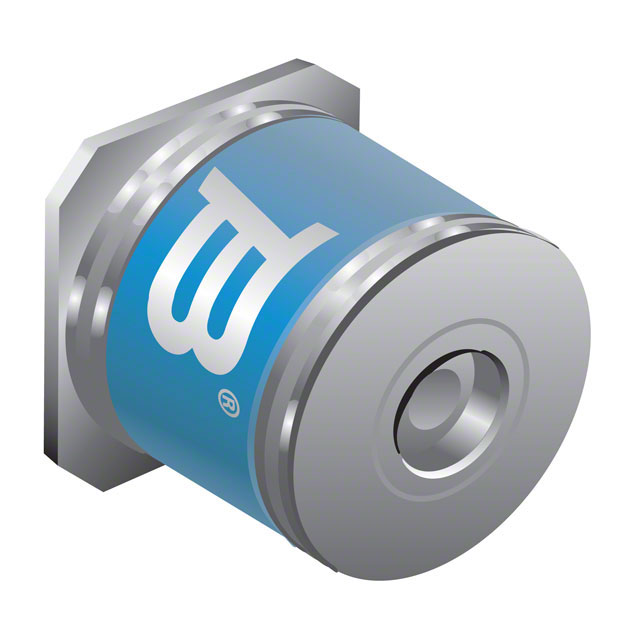

2039-80-SM-RPLF

Active

Bourns Inc.

GAS DISCHARGE TUBES 800VDC 2.5KADC 2.5AAC 1PF SOLDER PAD SMD

Search across all available documentation for this part.

Active

Bourns Inc.

GAS DISCHARGE TUBES 800VDC 2.5KADC 2.5AAC 1PF SOLDER PAD SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2039-80-SM-RPLF	2039 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	2.5 kA	2.5 kA
Impulse Discharge Current (8/20µs)	2500 A	2500 A
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Poles	2	2
Package / Case	2-SMD Cylinder Square End	Axial Cylinder, Axial Cylinder, Radial Bend, 2-SMD Cylinder Square End
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	800 V	800 - 1100 V

GAS DISCHARGE TUBES 1100VDC 2.5KADC 2.5AAC 1PF AXIAL THRU-HOLE

Part	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Package / Case	Mounting Type	Voltage - DC Spark Over (Nom)	Number of Poles	Tolerance
Bourns Inc. 2039-110-BLF	2.5 kA	2500 A	Axial Cylinder	Through Hole	1100 V	2	20 %
Bourns Inc. 2039-80-BLF	2.5 kA	2500 A	Axial Cylinder	Through Hole	800 V	2	20 %
Bourns Inc. 2039-110-B5LF	2.5 kA	2500 A	Axial Cylinder, Radial Bend	Through Hole	1100 V	2	20 %
Bourns Inc. 2039-110-BT1LF	2.5 kA	2500 A	Axial Cylinder	Through Hole	1100 V	2	20 %
Bourns Inc. 2039-110-SM-RPLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	1100 V	2	20 %
Bourns Inc. 2039-80-SMLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	800 V	2	20 %
Bourns Inc. 2039-80-B5LF	2.5 kA	2500 A	Axial Cylinder, Radial Bend	Through Hole	800 V	2	20 %
Bourns Inc. 2039-110-SMLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	1100 V	2	20 %
Bourns Inc. 2039-80-SM-RPLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	800 V	2	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 800 V 2500A (2.5kA) ±20% 2 Pole Surface Mount
