2039-110-BLF

Active

Bourns Inc.

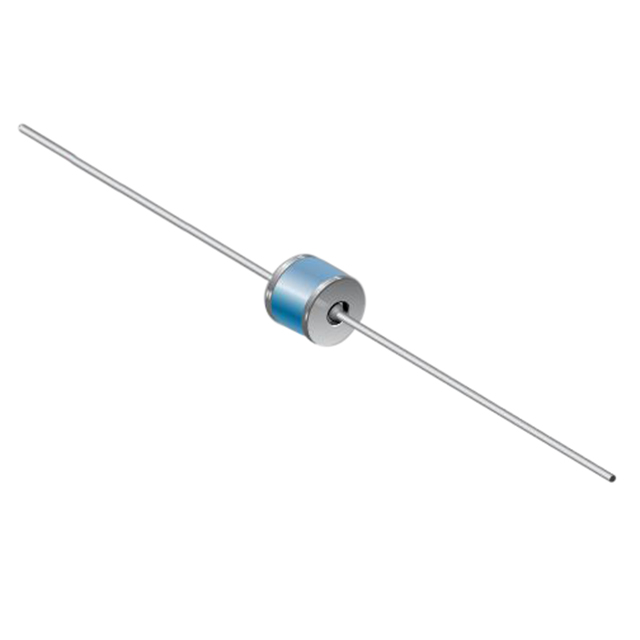

GAS DISCHARGE TUBES 1100VDC 2.5KADC 2.5AAC 1PF AXIAL THRU-HOLE

Search across all available documentation for this part.

Active

Bourns Inc.

GAS DISCHARGE TUBES 1100VDC 2.5KADC 2.5AAC 1PF AXIAL THRU-HOLE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Gas Discharge Tube 1100 V 2500A (2.5kA) ±20% 2 Pole Through Hole

Technical documentation and resources

Specification	2039-110-BLF	2039 Series

Fail Short	False	False
Impulse Discharge Current (8/20µs)	2.5 kA	2.5 kA
Impulse Discharge Current (8/20µs)	2500 A	2500 A
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Poles	2	2
Package / Case	Axial Cylinder	Axial Cylinder, Axial Cylinder, Radial Bend, 2-SMD Cylinder Square End
Tolerance	20 %	20 %
Voltage - DC Spark Over (Nom)	1100 V	800 - 1100 V

Part	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Package / Case	Mounting Type	Voltage - DC Spark Over (Nom)	Number of Poles	Tolerance
Bourns Inc. 2039-110-BLF	2.5 kA	2500 A	Axial Cylinder	Through Hole	1100 V	2	20 %
Bourns Inc. 2039-80-BLF	2.5 kA	2500 A	Axial Cylinder	Through Hole	800 V	2	20 %
Bourns Inc. 2039-110-B5LF	2.5 kA	2500 A	Axial Cylinder, Radial Bend	Through Hole	1100 V	2	20 %
Bourns Inc. 2039-110-BT1LF	2.5 kA	2500 A	Axial Cylinder	Through Hole	1100 V	2	20 %
Bourns Inc. 2039-110-SM-RPLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	1100 V	2	20 %
Bourns Inc. 2039-80-SMLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	800 V	2	20 %
Bourns Inc. 2039-80-B5LF	2.5 kA	2500 A	Axial Cylinder, Radial Bend	Through Hole	800 V	2	20 %
Bourns Inc. 2039-110-SMLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	1100 V	2	20 %
Bourns Inc. 2039-80-SM-RPLF	2.5 kA	2500 A	2-SMD Cylinder Square End	Surface Mount	800 V	2	20 %
