IXYH50N120C3

Active

IXYS

TRANSISTOR: IGBT; GENX3™; 1.2KV; 50A; 750W; TO247-3

Search across all available documentation for this part.

Active

IXYS

TRANSISTOR: IGBT; GENX3™; 1.2KV; 50A; 750W; TO247-3

Technical Specifications

Parameters and characteristics for this part

Specification	IXYH50N120C3

Current - Collector (Ic) (Max) [Max]	100 A
Current - Collector Pulsed (Icm)	240 A
Gate Charge	142 nC
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

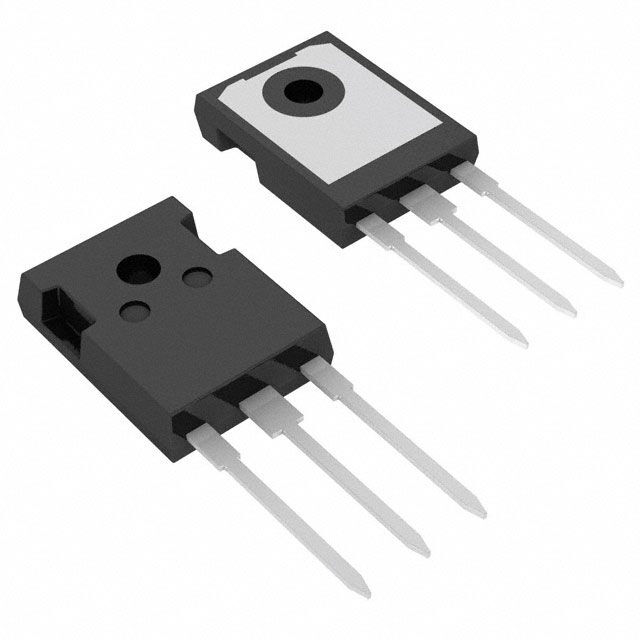

Package / Case	TO-247-3
Power - Max [Max]	750 W
Supplier Device Package	TO-247 (IXYH)
Switching Energy	3 mJ, 1 mJ
Td (on/off) @ 25°C	133 ns, 28 ns
Test Condition	5 Ohm, 50 A, 15 V, 600 V
Vce(on) (Max) @ Vge, Ic	3.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Reverse Recovery Time (trr)	Current - Collector Pulsed (Icm)	Mounting Type	Supplier Device Package	Gate Charge	Test Condition	Voltage - Collector Emitter Breakdown (Max)	Current - Collector (Ic) (Max)	Switching Energy	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power - Max [Max]	Td (on/off) @ 25°C	IGBT Type	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]
IXYS IXYH50N65C3D1	36 ns	250 A	Through Hole	TO-247 (IXTH)	86 nC	5 Ohm 15 V 36 A 400 V	650 V	132 A	800 µJ 800 µJ	2.1 V	-55 °C	175 ░C	TO-247-3	600 W	20 ns 90 ns
IXYS IXYH50N65C3H1	120 ns	250 A	Through Hole	TO-247 (IXTH)	80 nC	5 Ohm 15 V 36 A 400 V	650 V		1.3 mJ 370 µJ	2.1 V	-55 °C	175 ░C	TO-247-3	600 W	22 ns 80 ns	PT	130 A
IXYS IXYH50N120C3D1	195 ns	210 A	Through Hole	TO-247 (IXTH)	142 nC	5 Ohm 15 V 50 A 600 V			1 mJ 3 mJ	4 V	-55 °C	150 °C	TO-247-3	625 W	28 ns 133 ns		90 A	1200 V
IXYS IXYH50N65C3		250 A	Through Hole	TO-247 (IXTH)	80 nC	5 Ohm 15 V 36 A 400 V	650 V		1.3 mJ 370 µJ	2.1 V	-55 °C	175 ░C	TO-247-3	600 W	22 ns 80 ns	PT	130 A
IXYS IXYH50N120C3		240 A	Through Hole	TO-247 (IXYH)	142 nC	5 Ohm 15 V 50 A 600 V			1 mJ 3 mJ	3.5 V	-55 °C	175 ░C	TO-247-3	750 W	28 ns 133 ns		100 A	1200 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT 1200 V 100 A 750 W Through Hole TO-247 (IXYH)
