20020003-H031B01LF

Active

AMPHENOL ANYTEK

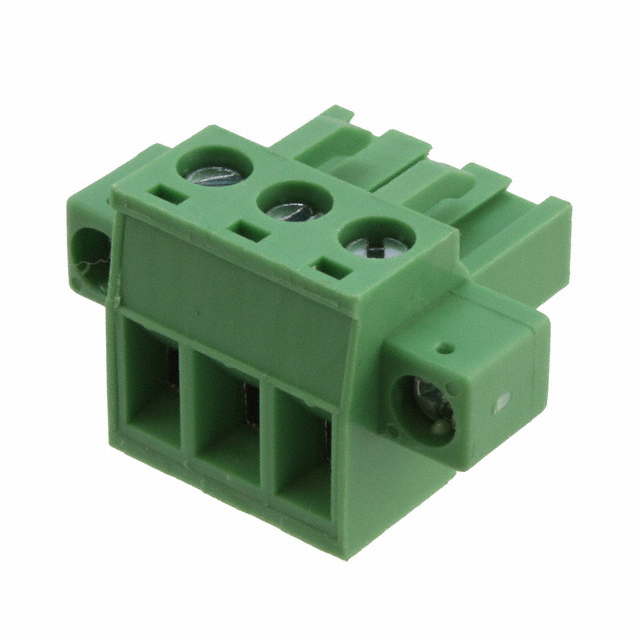

PLUGGABLE TERMINAL BLOCK, 5.08 MM, 3 POSITIONS, 24 AWG, 12 AWG, 2.5 MM², SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

20020003-H031B01LF

Active

AMPHENOL ANYTEK

PLUGGABLE TERMINAL BLOCK, 5.08 MM, 3 POSITIONS, 24 AWG, 12 AWG, 2.5 MM², SCREW

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1000	$ 0.80

Description

General part information

20020003 Series

3 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	20020003-H031B01LF	20020003 Series

Color	Green	Green, Black
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Current - UL	12 A	12 A
Features	Retention Latches (Non-Wire Side), Mating Flange	Retention Latches (Non-Wire Side), Mating Flange
Housing Material	Thermoplastic Resin	Thermoplastic Resin
Insulation Height	0.594 in	0.594 in
Insulation Height	15.09 mm	15.09 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	-	2 - 8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	3	2 - 8
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.56 Nm	0.56 Nm
Torque - Screw	5 Lb-In	5 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	24 AWG	24 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm² [Max]	2.5 mm²	2.5 mm²
Wire Gauge or Range - mm² [Min]	1 mm²	1 mm²
Wire Strip Length	-	8 mm
Wire Strip Length [Max]	8 mm	8 mm
Wire Strip Length [Min]	7 mm	7 mm

20020003 Series

TERM BLOCK PLUG 8POS STR 5MM

Part	Torque - Screw	Torque - Screw	Wire Strip Length [Min]	Wire Strip Length [Max]	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Screw Size	Contact Material	Features	Contact Mating Finish	Insulation Height	Insulation Height	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Pitch [x]	Pitch [x]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Mounting Type	Housing Material	Number of Levels	Voltage - UL	Number of Positions	Current - UL	Color	Termination Style	Wire Strip Length
AMPHENOL ANYTEK 20020003-G081B01LF	0.56 Nm	5 Lb-In	7 mm	8 mm	8	-40 °C	115 °C	UL94 V-0	M3	Copper Alloy	Mating Flange, Retention Latches (Non-Wire Side)	Tin	0.594 in	15.09 mm	2.5 mm²	1 mm²	5 mm	0.197 in	Plug, Female Sockets	24 AWG	12 AWG	Free Hanging (In-Line)	Thermoplastic Resin	1	300 V	8	12 A	Green	Screw - Rising Cage Clamp
AMPHENOL ANYTEK 20020003-H061B01LF	0.56 Nm	5 Lb-In	7 mm	8 mm	6	-40 °C	115 °C	UL94 V-0	M3	Copper Alloy	Mating Flange, Retention Latches (Non-Wire Side)	Tin	0.594 in	15.09 mm	2.5 mm²	1 mm²	5.08 mm	0.2 in	Plug, Female Sockets	24 AWG	12 AWG	Free Hanging (In-Line)	Thermoplastic Resin	1	300 V	6	12 A	Green	Screw - Rising Cage Clamp
AMPHENOL ANYTEK 20020003-H031B01LF	0.56 Nm	5 Lb-In	7 mm	8 mm	3	-40 °C	115 °C	UL94 V-0	M3	Copper Alloy	Mating Flange, Retention Latches (Non-Wire Side)	Tin	0.594 in	15.09 mm	2.5 mm²	1 mm²	5.08 mm	0.2 in	Plug, Female Sockets	24 AWG	12 AWG	Free Hanging (In-Line)	Thermoplastic Resin	1	300 V		12 A	Green	Screw - Rising Cage Clamp
AMPHENOL ANYTEK 20020003-H022B01LF	0.56 Nm	5 Lb-In			2	-40 °C	115 °C	UL94 V-0	M3	Copper Alloy	Mating Flange, Retention Latches (Non-Wire Side)	Tin	0.594 in	15.09 mm	2.5 mm²	1 mm²	5.08 mm	0.2 in	Plug, Female Sockets	24 AWG	12 AWG	Free Hanging (In-Line)	Thermoplastic Resin	1	300 V	2	12 A	Black	Screw - Rising Cage Clamp	8 mm
