20020003-G081B01LF
ActiveAMPHENOL ANYTEK

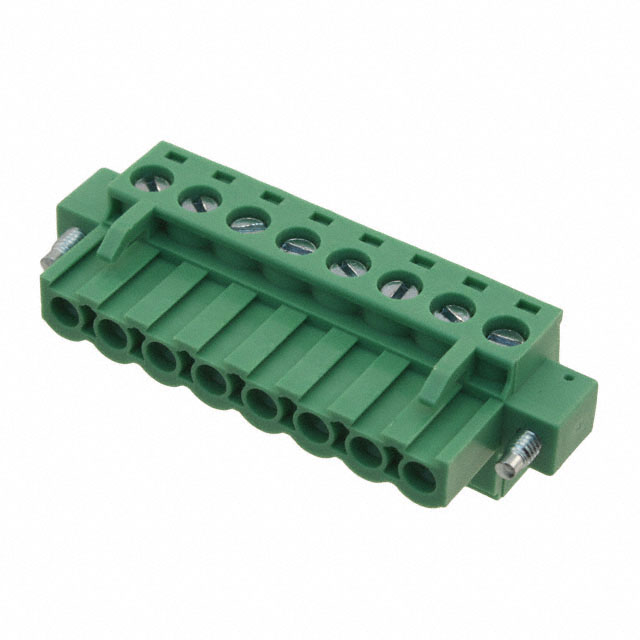

TERM BLOCK PLUG 8POS STR 5MM
Deep-Dive with AI
Search across all available documentation for this part.
20020003-G081B01LF
ActiveAMPHENOL ANYTEK
TERM BLOCK PLUG 8POS STR 5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 20020003-G081B01LF | 20020003 Series |
|---|---|---|
| Color | Green | Green, Black |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Mating Finish | Tin | Tin |
| Current - UL | 12 A | 12 A |
| Features | Retention Latches (Non-Wire Side), Mating Flange | Retention Latches (Non-Wire Side), Mating Flange |
| Housing Material | Thermoplastic Resin | Thermoplastic Resin |
| Insulation Height | 0.594 in | 0.594 in |
| Insulation Height | 15.09 mm | 15.09 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 8 | 2 - 8 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 - 5.08 mm |
| Pitch [x] | 0.197 in | 0.197 - 0.2 in |
| Positions Per Level | 8 | 2 - 8 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw | 0.56 Nm | 0.56 Nm |
| Torque - Screw | 5 Lb-In | 5 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 24 AWG | 24 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 1 mm² | 1 mm² |
| Wire Strip Length | - | 8 mm |
| Wire Strip Length [Max] | 8 mm | 8 mm |
| Wire Strip Length [Min] | 7 mm | 7 mm |
20020003 Series
TERM BLOCK PLUG 8POS STR 5MM
| Part | Torque - Screw | Torque - Screw | Wire Strip Length [Min] | Wire Strip Length [Max] | Positions Per Level | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Screw Size | Contact Material | Features | Contact Mating Finish | Insulation Height | Insulation Height | Wire Gauge or Range - mm² [Max] | Wire Gauge or Range - mm² [Min] | Pitch [x] | Pitch [x] | Type | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Mounting Type | Housing Material | Number of Levels | Voltage - UL | Number of Positions | Current - UL | Color | Termination Style | Wire Strip Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK 20020003-G081B01LF | 0.56 Nm | 5 Lb-In | 7 mm | 8 mm | 8 | -40 °C | 115 °C | UL94 V-0 | M3 | Copper Alloy | Mating Flange, Retention Latches (Non-Wire Side) | Tin | 0.594 in | 15.09 mm | 2.5 mm² | 1 mm² | 5 mm | 0.197 in | Plug, Female Sockets | 24 AWG | 12 AWG | Free Hanging (In-Line) | Thermoplastic Resin | 1 | 300 V | 8 | 12 A | Green | Screw - Rising Cage Clamp | |
AMPHENOL ANYTEK 20020003-H061B01LF | 0.56 Nm | 5 Lb-In | 7 mm | 8 mm | 6 | -40 °C | 115 °C | UL94 V-0 | M3 | Copper Alloy | Mating Flange, Retention Latches (Non-Wire Side) | Tin | 0.594 in | 15.09 mm | 2.5 mm² | 1 mm² | 5.08 mm | 0.2 in | Plug, Female Sockets | 24 AWG | 12 AWG | Free Hanging (In-Line) | Thermoplastic Resin | 1 | 300 V | 6 | 12 A | Green | Screw - Rising Cage Clamp | |
AMPHENOL ANYTEK 20020003-H031B01LF | 0.56 Nm | 5 Lb-In | 7 mm | 8 mm | 3 | -40 °C | 115 °C | UL94 V-0 | M3 | Copper Alloy | Mating Flange, Retention Latches (Non-Wire Side) | Tin | 0.594 in | 15.09 mm | 2.5 mm² | 1 mm² | 5.08 mm | 0.2 in | Plug, Female Sockets | 24 AWG | 12 AWG | Free Hanging (In-Line) | Thermoplastic Resin | 1 | 300 V | 12 A | Green | Screw - Rising Cage Clamp | ||
AMPHENOL ANYTEK 20020003-H022B01LF | 0.56 Nm | 5 Lb-In | 2 | -40 °C | 115 °C | UL94 V-0 | M3 | Copper Alloy | Mating Flange, Retention Latches (Non-Wire Side) | Tin | 0.594 in | 15.09 mm | 2.5 mm² | 1 mm² | 5.08 mm | 0.2 in | Plug, Female Sockets | 24 AWG | 12 AWG | Free Hanging (In-Line) | Thermoplastic Resin | 1 | 300 V | 2 | 12 A | Black | Screw - Rising Cage Clamp | 8 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 675 | $ 1.36 | |
Description
General part information
20020003 Series
8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
