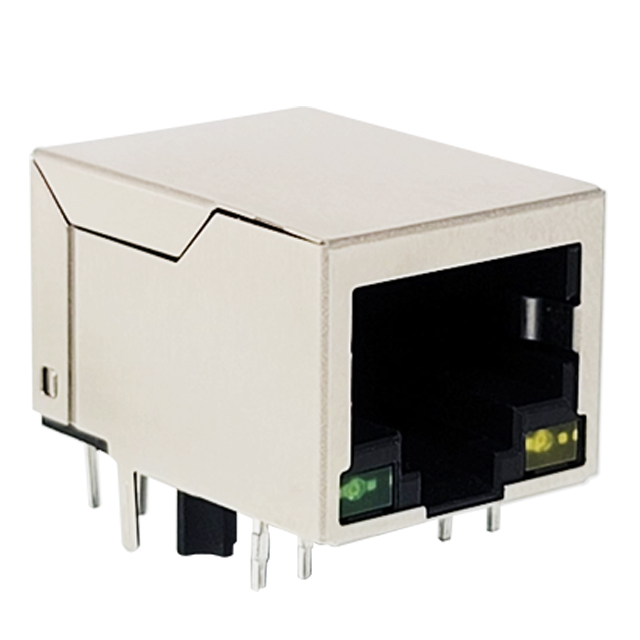

G15LX-110S-2.5G-G/Y-15

Active

Kycon, Inc.

CONN JACK RA W/LED 2.5G

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN JACK RA W/LED 2.5G

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	G15LX-110S-2.5G-G/Y-15	G15LX Series

Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Board Guide	Board Guide
Height Above Board	13.45 mm	13.45 mm
Height Above Board	0.53 in	0.53 in
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green	Yellow, Green
Mounting Type	Through Hole	Through Hole
Number of Cores per Jack	8	8
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	90 °	90 °
Shield Material	Brass	Brass
Shielding	Shielded	Shielded, Shielded, EMI Finger
Tab Direction	Down	Down
Termination	Solder	Solder

CONN JACK RA W/LED 2.5G

Part	Shield Material	Housing Material	Orientation	Connector Type	LED Color	Number of Cores per Jack	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Finish	Features	Height Above Board	Height Above Board	Tab Direction	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Number of Ports	Shielding
Kycon, Inc. G15LX-110S-2.5G-G/Y-15	Brass	Polybutylene Terephthalate (PBT)	90 °	RJ45	Green, Yellow	8	Phosphor Bronze	Solder	15 µin	0.38 µm	Through Hole	Gold	Board Guide	13.45 mm	0.53 in	Down	85 °C	-40 °C	1	1	Shielded
Kycon, Inc. G15LX-110S7-2.5G-G/Y-15	Brass	Polybutylene Terephthalate (PBT)	90 °	RJ45	Green, Yellow	8	Phosphor Bronze	Solder	15 µin	0.38 µm	Through Hole	Gold	Board Guide	13.45 mm	0.53 in	Down	85 °C	-40 °C	1	1	Shielded, EMI Finger

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	120	$ 5.53

General part information

1 Port RJ45Through Hole 2.5G Base-T
