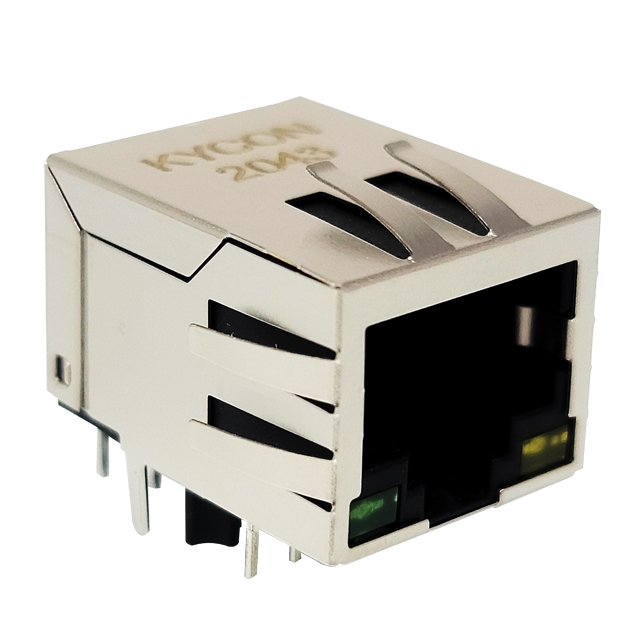

G15LX-110S7-2.5G-G/Y-15

Active

Kycon, Inc.

CONN JACK 1PORT 2.5G BASE-T T/H

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN JACK 1PORT 2.5G BASE-T T/H

Technical Specifications

Parameters and characteristics for this part

Specification	G15LX-110S7-2.5G-G/Y-15

Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Features	Board Guide
Height Above Board	13.45 mm
Height Above Board	0.53 in
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Yellow, Green
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Shielding	Number of Rows	Housing Material	LED Color	Features	Termination	Number of Cores per Jack	Tab Direction	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Orientation	Number of Ports	Contact Material
Kycon, Inc. G15LX-110S7-2.5G-G/Y-15	RJ45	Gold	15 µin	0.38 µm	Through Hole	Shielded EMI Finger	1	Polybutylene Terephthalate (PBT)	Green Yellow	Board Guide	Solder	8	Down	Brass	85 °C	-40 °C	13.45 mm	0.53 in	90 °	1	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	120	$ 6.63

General part information

1 Port RJ45Through Hole 2.5G Base-T
