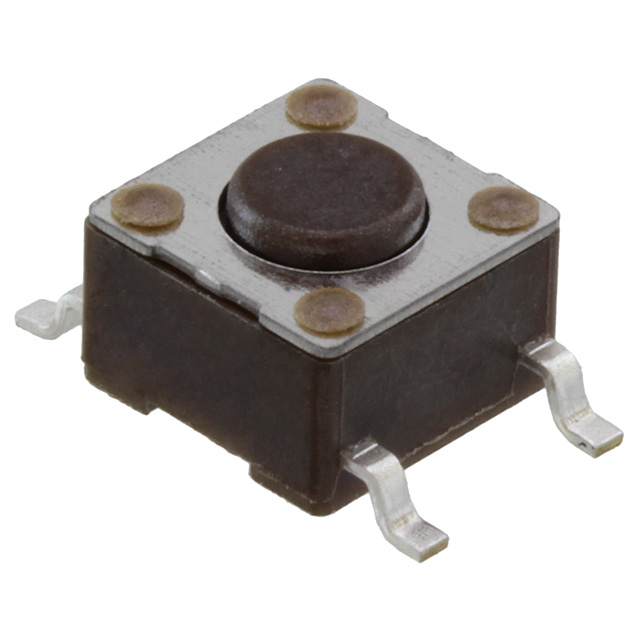

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

FSM2JSMLTR

Active

TE Connectivity Raychem Cable Protection

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FSM2JSMLTR

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

FSM2 Series

Part	Mechanical Life	Contact Rating @ Voltage	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Termination Style	Outline [y]	Outline [x]	Illumination	Operating Force	Actuator Material	Actuator Orientation	Switch Travel	Actuator Height off PCB, Vertical [z]	Mounting Type	Actuator Height off PCB, Vertical	Features	Switch Travel [custom]
TE Connectivity Raychem Cable Protection FSM2JSMLSTR	1000000 Cycles	0.05 A 24 VDC	Off-Mom	-40 °C	105 ░C	SPST-NO	Standard	Gull Wing	6 mm	6 mm	Non-Illuminated	100 gf	Nylon Polyamide (PA)	Top Actuated	0.25 mm	4.3 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2JELJXLTR	2000000 Cycles	0.05 A 24 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	J Lead	6.2 mm	6.2 mm	Non-Illuminated	50 gf	Thermoplastic	Top Actuated	0.2 mm	2.5 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2JSMLTR	200000 Cycles	0.05 A 24 VDC	Off-Mom	-40 °C	85 °C	SPST-NO	Standard	Gull Wing	6 mm	6 mm	Non-Illuminated	100 gf	Polyphenylene Sulfide (PPS)	Top Actuated	0.25 mm	4.3 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2J	100000 Cycles	0.05 A 24 VDC	Off-Mom	-20 C	70 °C	SPST-NO	Standard	PC Pin	6 mm	6 mm	Non-Illuminated		Polyester	Top Actuated	0.25 mm	4.3 mm	Through Hole
TE Connectivity Raychem Cable Protection FSM2JMTR	40000 Cycles	0.05 A 24 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Rectangular Button	J Lead	3.5 mm	6 mm	Non-Illuminated	180 gf	Polyphenylene Sulfide (PPS)	Top Actuated	0.25 mm		Surface Mount	5 mm
TE Connectivity Raychem Cable Protection FSM2JELGATR	100000 Cycles	0.05 A 12 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	Gull Wing	6.2 mm	6.2 mm	Non-Illuminated	260 gf	Thermoplastic	Top Actuated	0.25 mm	2.5 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2JELGELTR	1000000 Cycles	0.05 A 12 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	Gull Wing	6.2 mm	6.2 mm	Non-Illuminated	100 gf	Thermoplastic	Top Actuated	0.25 mm	2.5 mm	Surface Mount		Grounding Pin
TE Connectivity Raychem Cable Protection FSM201A	100000 Cycles	0.05 A 24 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	PC Pin	12 mm	12 mm	Non-Illuminated	260 gf	Thermoplastic	Top Actuated			Through Hole	8.5 mm		0.3 mm
