FSM2JSMLSTR

Active

TE Connectivity Raychem Cable Protection

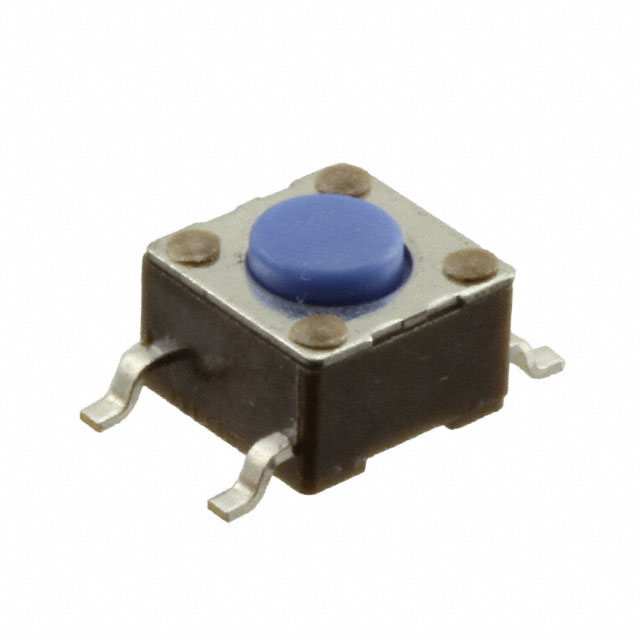

FSM2JSMLSTR=6MM TACT SWITCH, SMT 100GF,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Datasheet

FSM2JSMLSTR

Active

TE Connectivity Raychem Cable Protection

FSM2JSMLSTR=6MM TACT SWITCH, SMT 100GF,

Deep-Dive with AI

DocumentsDrawing EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FSM2JSMLSTR

Actuator Height off PCB, Vertical [z]	4.3 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Illumination	Non-Illuminated
Mechanical Life	1000000 Cycles
Mounting Type	Surface Mount
Operating Force	100 gf
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	Gull Wing

FSM2 Series

Part	Mechanical Life	Contact Rating @ Voltage	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Type	Termination Style	Outline [y]	Outline [x]	Illumination	Operating Force	Actuator Material	Actuator Orientation	Switch Travel	Actuator Height off PCB, Vertical [z]	Mounting Type	Actuator Height off PCB, Vertical	Features	Switch Travel [custom]
TE Connectivity Raychem Cable Protection FSM2JSMLSTR	1000000 Cycles	0.05 A 24 VDC	Off-Mom	-40 °C	105 ░C	SPST-NO	Standard	Gull Wing	6 mm	6 mm	Non-Illuminated	100 gf	Nylon Polyamide (PA)	Top Actuated	0.25 mm	4.3 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2JELJXLTR	2000000 Cycles	0.05 A 24 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	J Lead	6.2 mm	6.2 mm	Non-Illuminated	50 gf	Thermoplastic	Top Actuated	0.2 mm	2.5 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2JSMLTR	200000 Cycles	0.05 A 24 VDC	Off-Mom	-40 °C	85 °C	SPST-NO	Standard	Gull Wing	6 mm	6 mm	Non-Illuminated	100 gf	Polyphenylene Sulfide (PPS)	Top Actuated	0.25 mm	4.3 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2J	100000 Cycles	0.05 A 24 VDC	Off-Mom	-20 C	70 °C	SPST-NO	Standard	PC Pin	6 mm	6 mm	Non-Illuminated		Polyester	Top Actuated	0.25 mm	4.3 mm	Through Hole
TE Connectivity Raychem Cable Protection FSM2JMTR	40000 Cycles	0.05 A 24 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Rectangular Button	J Lead	3.5 mm	6 mm	Non-Illuminated	180 gf	Polyphenylene Sulfide (PPS)	Top Actuated	0.25 mm		Surface Mount	5 mm
TE Connectivity Raychem Cable Protection FSM2JELGATR	100000 Cycles	0.05 A 12 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	Gull Wing	6.2 mm	6.2 mm	Non-Illuminated	260 gf	Thermoplastic	Top Actuated	0.25 mm	2.5 mm	Surface Mount
TE Connectivity Raychem Cable Protection FSM2JELGELTR	1000000 Cycles	0.05 A 12 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	Gull Wing	6.2 mm	6.2 mm	Non-Illuminated	100 gf	Thermoplastic	Top Actuated	0.25 mm	2.5 mm	Surface Mount		Grounding Pin
TE Connectivity Raychem Cable Protection FSM201A	100000 Cycles	0.05 A 24 VDC	Off-Mom	-35 °C	85 °C	SPST-NO	Standard	PC Pin	12 mm	12 mm	Non-Illuminated	260 gf	Thermoplastic	Top Actuated			Through Hole	8.5 mm		0.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.37
	Digi-Reel®	1	$ 0.37
	Tape & Reel (TR)	12000	$ 0.21
Newark	Each	5000	$ 0.21

Description

General part information

FSM2 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

Drawing EN

Datasheet
