SFML-107-T1-S-D-LC
ActiveSamtec Inc.

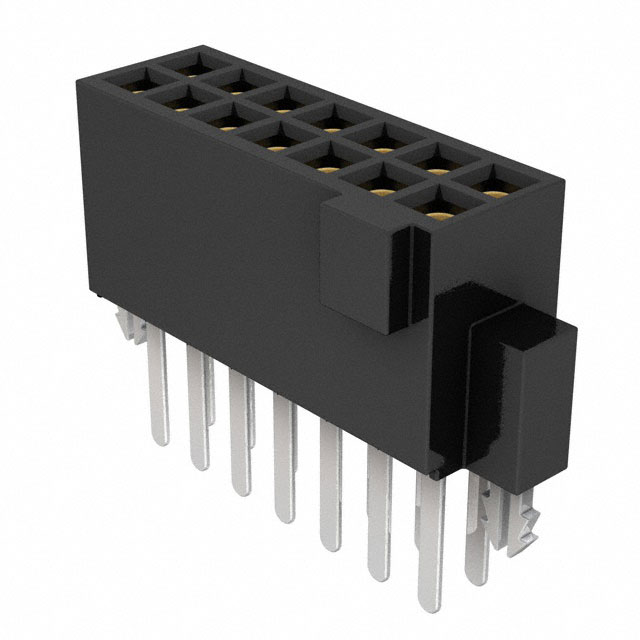

CONN RCPT 14POS 0.05 GOLD PCB
Deep-Dive with AI
Search across all available documentation for this part.
SFML-107-T1-S-D-LC
ActiveSamtec Inc.
CONN RCPT 14POS 0.05 GOLD PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SFML-107-T1-S-D-LC |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post [x] | 0.12 in |
| Contact Length - Post [x] | 3.05 mm |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3.2 A |
| Fastening Type | Locking Ramp |
| Insulation Color | Black |
| Insulation Height | 4.57 mm |
| Insulation Height | 0.18 " |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 250 VAC |
SFML-107 Series
| Part | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Material | Contact Type | Contact Finish - Post | Current Rating (Amps) | Number of Positions Loaded | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Features | Contact Finish - Mating | Fastening Type | Insulation Color | Termination | Style | Insulation Height | Insulation Height | Material Flammability Rating | Contact Shape | Pitch - Mating | Pitch - Mating | Connector Type | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 10 çin | 0.25 çm | Surface Mount | 0.05 in | 1.27 mm | Pick and Place | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | ||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 30 Áin | 0.76 Ám | Through Hole | 0.05 in | 1.27 mm | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.18 " | 4.57 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | 0.12 in | 3.05 mm | |
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 10 çin | 0.25 çm | Through Hole | 0.05 in | 1.27 mm | Pick and Place | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.18 " | 4.57 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | 0.12 in | 3.05 mm |
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 10 çin | 0.25 çm | Surface Mount | 0.05 in | 1.27 mm | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | |||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 10 çin | 0.25 çm | Surface Mount | 0.05 in | 1.27 mm | Board Guide | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | ||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 10 çin | 0.25 çm | Surface Mount | 0.05 in | 1.27 mm | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | |||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 10 çin | 0.25 çm | Surface Mount | 0.05 in | 1.27 mm | Board Guide Pick and Place | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | ||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 30 Áin | 0.76 Ám | Surface Mount | 0.05 in | 1.27 mm | Board Lock Pick and Place | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | ||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 30 Áin | 0.76 Ám | Surface Mount | 0.05 in | 1.27 mm | Pick and Place Solder Retention | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 | ||
Samtec Inc. | 250 VAC | -55 °C | 125 °C | Liquid Crystal Polymer (LCP) | Female Socket | Tin | 3.2 A | All | 2 | 30 Áin | 0.76 Ám | Surface Mount | 0.05 in | 1.27 mm | Pick and Place | Gold | Locking Ramp | Black | Solder | Board to Board Cable | 0.185 in | 4.7 mm | UL94 V-0 | Square | 0.05 in | 1.27 mm | Receptacle | 14 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.05 | |
| 25 | $ 3.66 | |||
| 50 | $ 3.40 | |||
| 100 | $ 3.24 | |||
| 500 | $ 3.04 | |||
Description
General part information
SFML-107 Series
14 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
