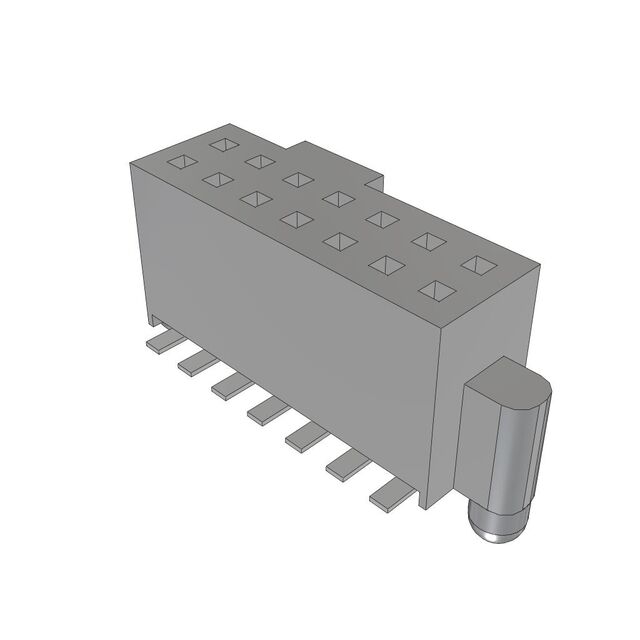

SFML-107-02-L-D-A

Active

Samtec Inc.

CONN RCPT 14POS 0.05 GOLD SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

SFML-107 Series

Headers & Wire Housings .050" Tiger Eye High-Reliability Locking Socket Strip

Technical Specifications

Parameters and characteristics for this part

Specification	SFML-107-02-L-D-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Per Contact)	3.2 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Black
Insulation Height	0.185 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Style	Board, Board or Cable
Termination	Solder
Voltage Rating	250 V

SFML-107 Series

Headers & Wire Housings .050" Tiger Eye High-Reliability Locking Socket Strip

Part	Number of Rows	Insulation Height	Mounting Type	Style	Fastening Type	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Contact Finish Thickness - Mating	Material Flammability Rating	Connector Type	Current Rating (Per Contact)	Contact Finish - Mating	Number of Positions Loaded	Voltage Rating	Pitch - Mating	Insulation Color	Contact Finish - Post	Number of Positions	Contact Type	Features	Row Spacing - Mating	Insulation Material	Contact Shape	Contact Length - Post
Samtec Inc. SFML-107-02-L-D-K-TR	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	10 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Pick and Place	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-T1-S-D-LC	2	0.18 in	Through Hole	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	30 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Lock	0.05 in	Liquid Crystal Polymer (LCP)	Square	0.12 in
Samtec Inc. SFML-107-01-L-D-K	2	0.18 in	Through Hole	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	10 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Pick and Place	0.05 in	Liquid Crystal Polymer (LCP)	Square	0.12 in
Samtec Inc. SFML-107-T2-L-D-LC	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	10 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Lock	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-T2-S-D-P-TR	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	30 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Pick and Place	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-02-L-D-A	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	10 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Guide	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-02-L-D-LC	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	10 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Lock	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-T2-L-D-A-P-TR	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	10 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Guide Pick and Place	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-T2-S-D-LC-P	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	30 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Lock Pick and Place	0.05 in	Liquid Crystal Polymer (LCP)	Square
Samtec Inc. SFML-107-02-S-D-LC-K-TR	2	0.185 in	Surface Mount	Board Board or Cable	Locking Ramp	125 °C	-55 °C	Solder	30 µin	UL94 V-0	Receptacle	3.2 A	Gold	All	250 V	0.05 in	Black	Tin	14	Female Socket	Board Lock Pick and Place	0.05 in	Liquid Crystal Polymer (LCP)	Square
