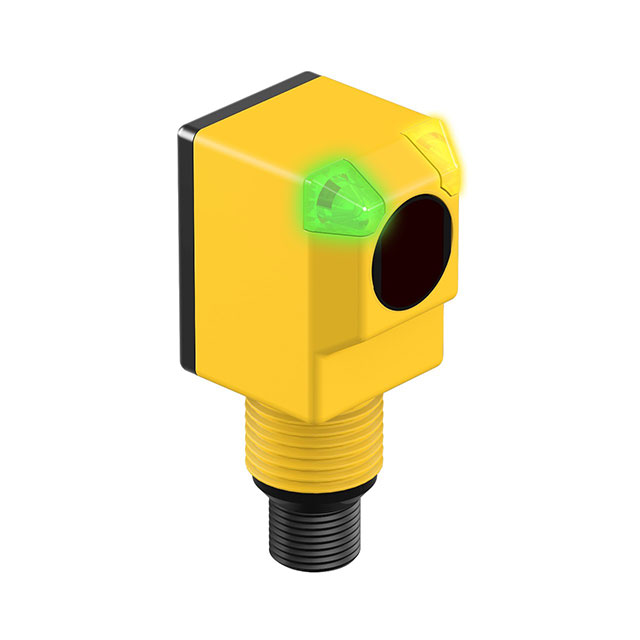

Q25SP6RQ

Active

BANNER ENGINEERING

EZ-BEAM Q25 SERIES: RECEIVER

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-BEAM Q25 SERIES: RECEIVER

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Method	Light Source	Connection Method	Sensing Distance	Sensing Distance	Ingress Protection	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Cable Length	Cable Length
BANNER ENGINEERING Q25SP6LP	Polarized Retroreflective	Red	Cable	78.74 "	2 m	NEMA 6P IEC IP67	3 ms	-40 °C	70 °C	30 VDC	10 VDC	PNP - Dark-ON/Light-ON - Selectable	78.74 in	2 m
BANNER ENGINEERING Q25SP6RQ	Through-Beam	LED	Connector	787.402 in	20 m	NEMA 6P IEC IP67	3 ms	-40 °C	70 °C	30 VDC	10 VDC	PNP - Dark-ON/Light-ON
BANNER ENGINEERING Q25SP6LPQ	Polarized Retroreflective	LED	Connector	78.74 "	2 m	NEMA 6P IEC IP67	3 ms	-40 °C	70 °C	30 VDC	10 VDC	PNP - Dark-ON/Light-ON

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 787.402" (20m) PNP - Dark-ON/Light-ON
