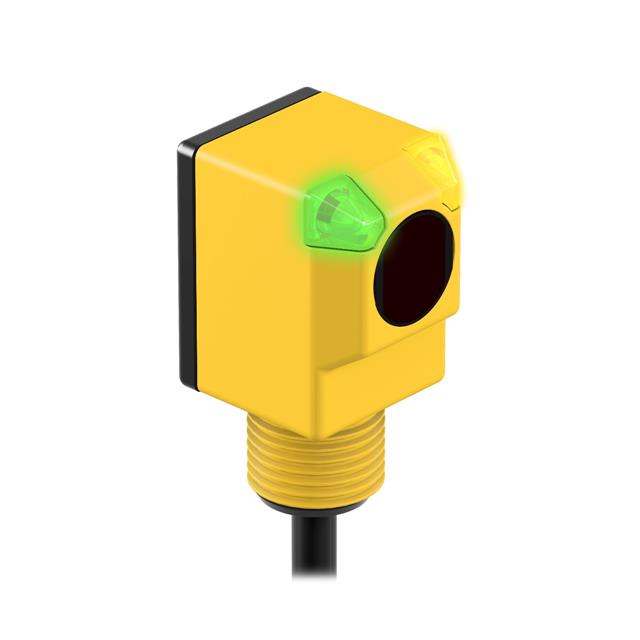

Q25SP6LP

Active

BANNER ENGINEERING

EZ-BEAM Q25 SERIES: POLARIZED RETRO

Search across all available documentation for this part.

Active

BANNER ENGINEERING

EZ-BEAM Q25 SERIES: POLARIZED RETRO

Technical Specifications

Parameters and characteristics for this part

Specification	Q25SP6LP

Cable Length	78.74 in
Cable Length	2 m
Connection Method	Cable
Ingress Protection	NEMA 6P, IEC IP67
Light Source	Red
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Configuration	PNP - Dark-ON/Light-ON - Selectable
Response Time	3 ms
Sensing Distance	78.74 "
Sensing Distance	2 m
Sensing Method	Polarized, Retroreflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Method	Light Source	Connection Method	Sensing Distance	Sensing Distance	Ingress Protection	Response Time	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Configuration	Cable Length	Cable Length
BANNER ENGINEERING Q25SP6LP	Polarized Retroreflective	Red	Cable	78.74 "	2 m	NEMA 6P IEC IP67	3 ms	-40 °C	70 °C	30 VDC	10 VDC	PNP - Dark-ON/Light-ON - Selectable	78.74 in	2 m
BANNER ENGINEERING Q25SP6RQ	Through-Beam	LED	Connector	787.402 in	20 m	NEMA 6P IEC IP67	3 ms	-40 °C	70 °C	30 VDC	10 VDC	PNP - Dark-ON/Light-ON
BANNER ENGINEERING Q25SP6LPQ	Polarized Retroreflective	LED	Connector	78.74 "	2 m	NEMA 6P IEC IP67	3 ms	-40 °C	70 °C	30 VDC	10 VDC	PNP - Dark-ON/Light-ON

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 131.00
Newark	Each	1	$ 138.00

General part information

Retroreflective, Polarized Optical Sensor 78.740" (2m) PNP - Dark-ON/Light-ON - Selectable
