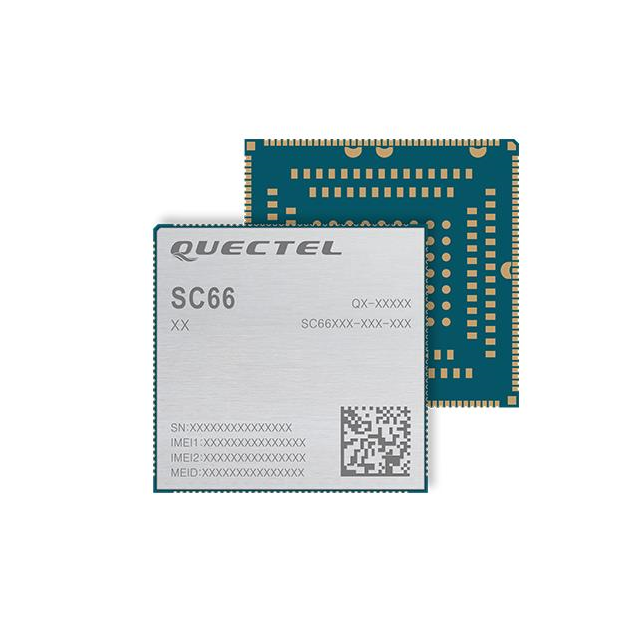

SC66ENA-32GB-UGADG
ObsoleteQuectel
RF TXRX MOD BT NAV WIFISMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SC66ENA-32GB-UGADG |
|---|---|
| Antenna Type | Antenna Not Included |
| Data Rate | 300 Mbps |
| Frequency | 5 GHz, 2.4 GHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Min] | -35 °C |
| Package / Case | Module |
| Protocol | Galileo, GNSS, Bluetooth v3.0, Bluetooth v5.0, GLONASS, 802.11a/b/g/n, GPS, Bluetooth v4.2, Beidou, Bluetooth v4.1, Bluetooth v2.1 + EDR |
| RF Family/Standard | WiFi, Bluetooth, Navigation |
| Serial Interfaces | UART, I2C, SPI, GPIO, SDIO, ADC, I2S, USB |
| Voltage - Supply [Max] | 4.4 V |
| Voltage - Supply [Min] | 3.55 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SC66 Series
Bluetooth, Navigation, WiFi 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, Bluetooth v5.0, BeiDou, Galileo, GLONASS, GPS, GNSS Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount
