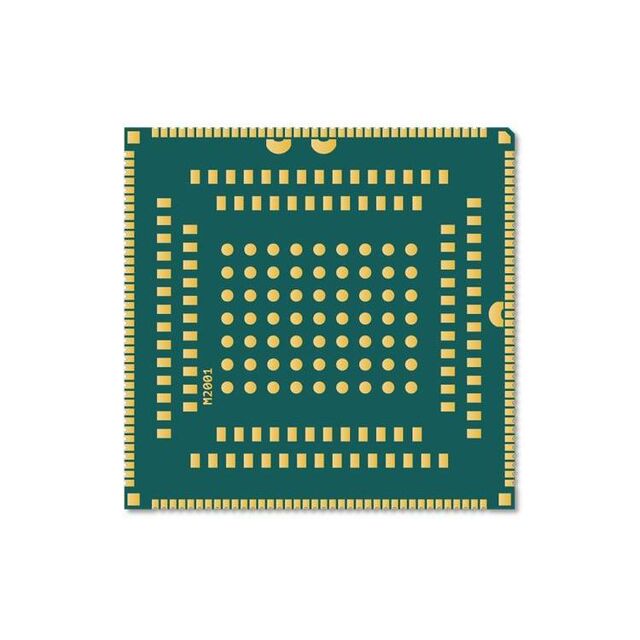

SC66MWNATEA-32GB-UNN

NRND

Quectel

RF TXRX MOD BLUETOOTH WIFISMD

RF and Wireless

SC66MWNATEA-32GB-UNN

NRND

Quectel

RF TXRX MOD BLUETOOTH WIFISMD

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SC66MWNATEA-32GB-UNN

Antenna Type	Antenna Not Included
Data Rate	300 Mbps
Frequency	2.4 GHz, 5 GHz
Frequency	2.4GHz, 5GHz
Mounting Type	Surface Mount
Operating Temperature (Max)	75 °C
Operating Temperature (Min)	-35 °C
Package / Case	Module
Protocol	802.11g, Bluetooth v3.0, Bluetooth v5.0, 802.11b, Bluetooth v4.2, Bluetooth v2.1 + EDR, Bluetooth v4.1, 802.11a, 802.11n
RF Family/Standard	WiFi, Bluetooth
Serial Interfaces	SPI, I2C, GPIO, SDIO, ADC, USB, UART, I2S
Voltage - Supply (Maximum)	4.4 V
Voltage - Supply (Minimum)	3.55 V

SC66 Series

Part	Protocol	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Serial Interfaces	Frequency	Frequency	Package / Case	Mounting Type	Antenna Type	Data Rate	RF Family/Standard	Operating Temperature (Max)	Operating Temperature (Min)	Utilized IC / Part
Quectel SC66MWNATEA-32GB-UNN	802.11a 802.11b 802.11g 802.11n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth WiFi	75 °C	-35 °C
Quectel SC66ENATEA-64GB-UGAD	802.11a 802.11b 802.11g 802.11n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0 Galileo GLONASS GNSS GPS	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth Navigation WiFi	75 °C	-35 °C
Quectel SC66MWNA-32GB-UNN	802.11a 802.11b 802.11g 802.11n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth WiFi	75 °C	-35 °C	Qualcomm® Snapdragon SDM660
Quectel SC66MWNB-64GB-UNN	802.11a 802.11b 802.11g 802.11n Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth WiFi	75 °C	-35 °C
Quectel SC66JNA-32GB-UGAD	802.11a 802.11b 802.11g 802.11n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0 Galileo GLONASS GNSS GPS	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth Navigation WiFi	75 °C	-35 °C	Qualcomm® Snapdragon SDM660
Quectel SC66ENA-32GB-UGADG	802.11a 802.11b 802.11g 802.11n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0 Galileo GLONASS GNSS GPS	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth Navigation WiFi	75 °C	-35 °C
Quectel SC66WNATEA-32GB-UNN		3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps		75 °C	-35 °C
Quectel SC66ENATEA-32GB-UGAD	802.11a 802.11b 802.11g 802.11n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0 Galileo GLONASS GNSS GPS	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth Navigation WiFi	75 °C	-35 °C
Quectel SC66ANB-64GB-UGAD	802.11a 802.11b 802.11g 802.11n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0 Galileo GLONASS GNSS GPS	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth Navigation WiFi	75 °C	-35 °C	Qualcomm® Snapdragon SDM660
Quectel SC66ANA-32GB-UGAD	802.11a 802.11b 802.11g 802.11n BeiDou Bluetooth v2.1 + EDR Bluetooth v3.0 Bluetooth v4.1 Bluetooth v4.2 Bluetooth v5.0 Galileo GLONASS GNSS GPS	3.55 V	4.4 V	ADC GPIO I2C I2S SDIO SPI UART USB	2.4 GHz 5 GHz	2.4GHz 5GHz	Module	Surface Mount	Antenna Not Included	300 Mbps	Bluetooth Navigation WiFi	75 °C	-35 °C	Qualcomm® Snapdragon SDM660

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$	Updated

Digikey	Box	1	$ 175.68	1w

CAD

3D models and CAD resources for this part

Description

General part information

SC66 Series

Bluetooth, WiFi 802.11a/b/g/n, Bluetooth v2.1 + EDR, Bluetooth v3.0, Bluetooth v4.1, Bluetooth v4.2, Bluetooth v5.0 Transceiver Module 2.4GHz, 5GHz Antenna Not Included Surface Mount

Documents

Technical documentation and resources

SC66MWNATEA-32GB-UNN | Datasheet
