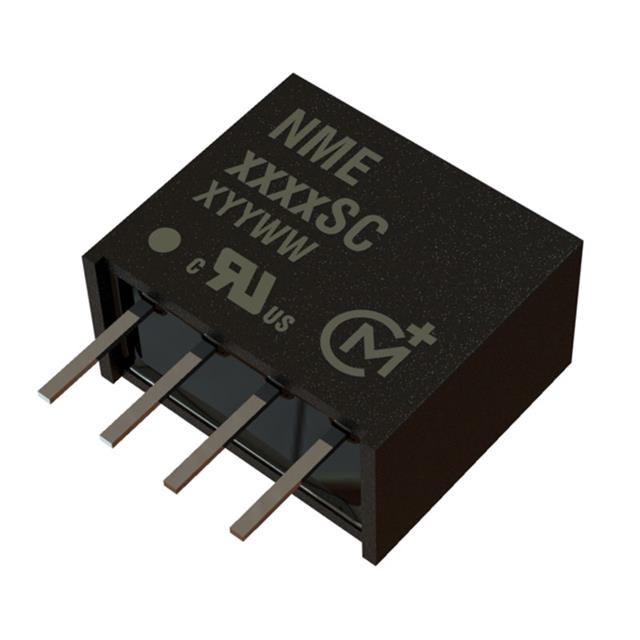

NME0512SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Search across all available documentation for this part.
NME0512SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NME0512SC | NME05 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 42 - 200 mA |
| Efficiency | - | 69 - 80 % |
| Features | - | SCP |
| Mounting Type | - | Through Hole |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 8-DIP Module, 7-DIP Module, 4-SIP Module |
| Package / Case | - | 4 Lead |
| Size / Dimension | - | 9.9 - 11.6 mm |
| Size / Dimension | - | 0.39 - 0.45 in |
| Size / Dimension | - | 0.39 - 0.46 " |
| Size / Dimension | - | 6.9 mm |
| Size / Dimension | - | 9.9 - 11.4 mm |
| Size / Dimension | - | 0.27 " |
| Type | - | Isolated Module |
| Voltage - Input (Max) | - | 5.5 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Isolation | - | 1000 V |
| Voltage - Output 1 | - | 5 - 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NME05 Series
DC DC CONVERTER 24V 1W
| Part | Voltage - Isolation | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Voltage - Input (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 | Number of Outputs | Package / Case | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NME0524DC | 1000 V | ITE (Commercial) | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " | Through Hole | 5.5 V | 80 % | 85 °C | -40 °C | 42 mA | 4.5 V | Isolated Module | 24 V | 1 | 8-DIP Module | 4 Lead | |
Murata Power Solutions Inc. NME0512SC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0505DPC | 1000 V | ITE (Commercial) | 11.6 mm | 0.39 " | 0.46 in | 6.9 mm | 9.9 mm | 0.27 " | Through Hole | 5.5 V | 77 % | 85 °C | -40 °C | 200 mA | 4.5 V | Isolated Module | 5 V | 1 | 7-DIP Module | 4 Lead | SCP |
Murata Power Solutions Inc. NME0512DC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0505DPC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0509SC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0512SC | 1000 V | ITE (Commercial) | Through Hole | 5.5 V | 78 % | 85 °C | -40 °C | 83 mA | 4.5 V | Isolated Module | 12 V | 1 | 4-SIP Module | ||||||||
Murata Power Solutions Inc. NME0509DC | 1000 V | ITE (Commercial) | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " | Through Hole | 5.5 V | 77 % | 85 °C | -40 °C | 4.5 V | Isolated Module | 9 V | 1 | 8-DIP Module | 4 Lead | ||
Murata Power Solutions Inc. NME0509SC | 1000 V | ITE (Commercial) | Through Hole | 5.5 V | 77 % | 85 °C | -40 °C | 4.5 V | Isolated Module | 9 V | 1 | 4-SIP Module | |||||||||
Murata Power Solutions Inc. NME0505DC | 1000 V | ITE (Commercial) | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " | Through Hole | 5.5 V | 69 % | 85 °C | -40 °C | 200 mA | 4.5 V | Isolated Module | 5 V | 1 | 8-DIP Module | 4 Lead |
Description
General part information
NME05 Series
The NME0512SC is a 1-output 1W board-mount isolated DC to DC Converter particularly suited to isolating and/or converting DC power rails. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. Pin compatible with LME and NML series.
