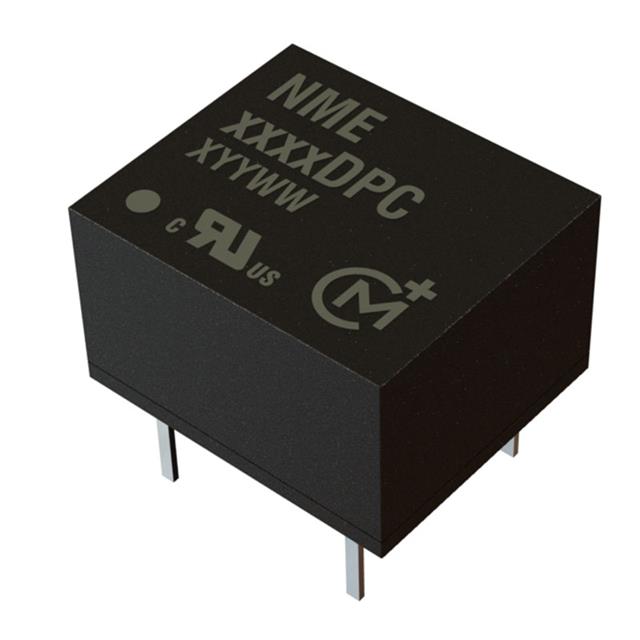

NME0505DPC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
NME0505DPC
ActiveMurata Power Solutions Inc.
ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 1:1, 1 W, 1 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | NME0505DPC | NME05 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Current - Output (Max) [Max] | 200 mA | 42 - 200 mA |
| Efficiency | 77 % | 69 - 80 % |
| Features | SCP | SCP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 7-DIP Module | 8-DIP Module, 7-DIP Module, 4-SIP Module |
| Package / Case | 4 Lead | 4 Lead |
| Size / Dimension [x] | 11.6 mm | 9.9 - 11.6 mm |
| Size / Dimension [x] | 0.46 in | 0.39 - 0.46 " |
| Size / Dimension [y] | 9.9 mm | 9.9 - 11.4 mm |
| Size / Dimension [y] | 0.39 " | 0.39 - 0.45 in |
| Size / Dimension [z] | 0.27 " | 0.27 " |
| Size / Dimension [z] | 6.9 mm | 6.9 mm |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Isolation | 1000 V | 1000 V |
| Voltage - Output 1 | 5 V | 5 - 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
NME05 Series
DC DC CONVERTER 24V 1W
| Part | Voltage - Isolation | Applications | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Mounting Type | Voltage - Input (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Type | Voltage - Output 1 | Number of Outputs | Package / Case | Package / Case | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. NME0524DC | 1000 V | ITE (Commercial) | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " | Through Hole | 5.5 V | 80 % | 85 °C | -40 °C | 42 mA | 4.5 V | Isolated Module | 24 V | 1 | 8-DIP Module | 4 Lead | |
Murata Power Solutions Inc. NME0512SC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0505DPC | 1000 V | ITE (Commercial) | 11.6 mm | 0.39 " | 0.46 in | 6.9 mm | 9.9 mm | 0.27 " | Through Hole | 5.5 V | 77 % | 85 °C | -40 °C | 200 mA | 4.5 V | Isolated Module | 5 V | 1 | 7-DIP Module | 4 Lead | SCP |
Murata Power Solutions Inc. NME0512DC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0505DPC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0509SC | |||||||||||||||||||||
Murata Power Solutions Inc. NME0512SC | 1000 V | ITE (Commercial) | Through Hole | 5.5 V | 78 % | 85 °C | -40 °C | 83 mA | 4.5 V | Isolated Module | 12 V | 1 | 4-SIP Module | ||||||||
Murata Power Solutions Inc. NME0509DC | 1000 V | ITE (Commercial) | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " | Through Hole | 5.5 V | 77 % | 85 °C | -40 °C | 4.5 V | Isolated Module | 9 V | 1 | 8-DIP Module | 4 Lead | ||
Murata Power Solutions Inc. NME0509SC | 1000 V | ITE (Commercial) | Through Hole | 5.5 V | 77 % | 85 °C | -40 °C | 4.5 V | Isolated Module | 9 V | 1 | 4-SIP Module | |||||||||
Murata Power Solutions Inc. NME0505DC | 1000 V | ITE (Commercial) | 9.9 mm | 0.45 in | 0.39 " | 6.9 mm | 11.4 mm | 0.27 " | Through Hole | 5.5 V | 69 % | 85 °C | -40 °C | 200 mA | 4.5 V | Isolated Module | 5 V | 1 | 8-DIP Module | 4 Lead |
Description
General part information
NME05 Series
Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
