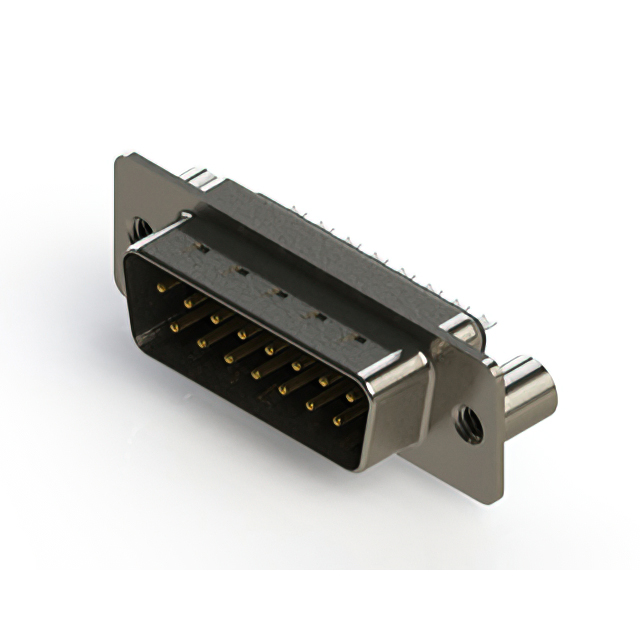

CONN D-SUB PLUG 15POS SLDR CUP

627-015-222-269

Active

EDAC Inc.

CONN D-SUB PLUG 15POS SLDR CUP

Description Specifications Series Pricing CAD Documents

Description

General part information

627-015 Series

15 Position D-Sub Plug, Male Pins Connector

Technical Specifications

Parameters and characteristics for this part

Specification	627-015-222-269

Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Per Contact)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Shielded, Grounding Indents
Finish	Tin Plated
Flange Feature	Board Side (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder Cup

627-015 Series

...

Part	Contact Finish	Flange Feature	Current Rating (Per Contact)	Number of Positions	Contact Finish Thickness	Termination	Connector Type	Shell Size	Connector Layout	Number of Rows	Shell Material	Finish	Material Flammability Rating	Connector Style	Mounting Type	Contact Type	Features	Color	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Contact Finish Thickness (string set options)	Contact Finish Thickness
EDAC Inc. 627-015-621-051	Gold	Board Side (4-40)	3 A	15	30 µin	Solder	Male Pins Plug	2	A DA	2	Steel	Nickel Plated	UL94 V-0	D-Sub	Through Hole	Signal	Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass
EDAC Inc. 627-015-622-043	Gold	Board Side (4-40)	3 A	15	30 µin	Solder Cup	Male Pins Plug	2	A DA	2	Steel	Nickel Plated	UL94 V-0	D-Sub	Free Hanging (In-Line)	Signal	Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass
EDAC Inc. 627-015-220-243	Gold	Board Side (4-40)	3 A	15	0	Solder	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Through Hole	Signal	Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass	Flash	Flash
EDAC Inc. 627-015-322-043	Gold	Board Side (4-40)	3 A	15	15 µin	Solder Cup	Male Pins Plug	2	A DA	2	Steel	Nickel Plated	UL94 V-0	D-Sub	Free Hanging (In-Line)	Signal	Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass
EDAC Inc. 627-015-222-269	Gold	Board Side (4-40)	3 A	15	0	Solder Cup	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Free Hanging (In-Line)	Signal	Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass	Flash	Flash
EDAC Inc. 627-015-626-216	Gold	Board Side (4-40)	3 A	15	30 µin	Press-Fit	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Through Hole	Signal	Board Lock Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass
EDAC Inc. 627-015-381-276	Gold	Board Side (4-40)	3 A	15	15 µin	Solder	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Through Hole	Signal	Board Lock Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass
EDAC Inc. 627-015-221-278	Gold	Board Side (4-40)	3 A	15	0	Solder	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Through Hole	Signal	Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass	Flash	Flash
EDAC Inc. 627-015-622-263	Gold	Board Side (4-40)	3 A	15	30 µin	Solder Cup	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Free Hanging (In-Line)	Signal	Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass
EDAC Inc. 627-015-261-276	Gold	Board Side (4-40)	3 A	15	0	Solder	Male Pins Plug	2	A DA	2	Steel	Tin Plated	UL94 V-0	D-Sub	Through Hole	Signal	Board Lock Grounding Indents Shielded	Black	Polyester Thermoplastic	-55 °C	85 °C	Brass	Flash	Flash
