627-015-622-043

Active

EDAC Inc.

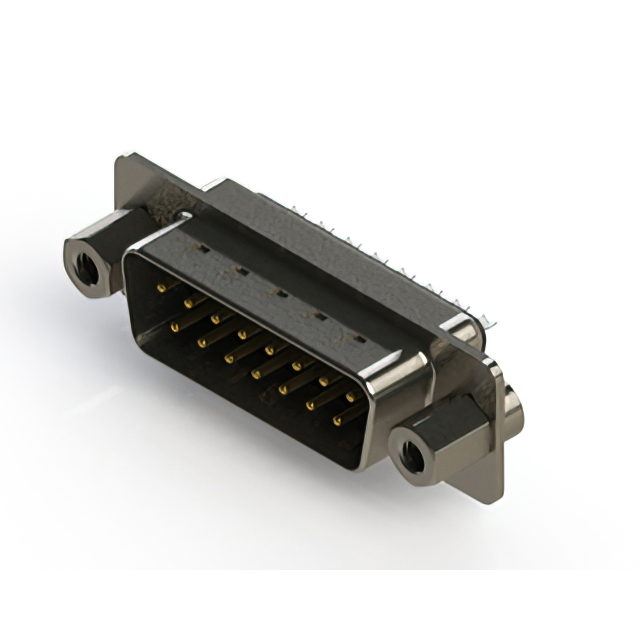

CONN D SUB PLUG 15POS VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

627-015-622-043

Active

EDAC Inc.

CONN D SUB PLUG 15POS VERT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	627-015-622-043

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Grounding Indents, Shielded
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2

627-015 Series

...

Part	Flange Feature	Features	Shell Size, Connector Layout	Current Rating (Amps)	Contact Material	Material Flammability Rating	Contact Type	Contact Finish	Shell Material, Finish	Connector Style	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Number of Rows	Termination	Contact Finish Thickness
EDAC Inc. 627-015-622-043	4-40 Board Side	Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold	Nickel Plated Steel	D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug	0.76 Ám	30 Áin	Black	Free Hanging (In-Line)	2
EDAC Inc. 627-015-220-243	4-40 Board Side	Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug			Black	Through Hole	2	Solder	Flash
EDAC Inc. 627-015-322-043	4-40 Board Side	Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold	Nickel Plated Steel	D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug	0.38 µm	15 µin	Black	Free Hanging (In-Line)	2
EDAC Inc. 627-015-222-269	4-40 Board Side	Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug			Black	Free Hanging (In-Line)	2		Flash
EDAC Inc. 627-015-381-276	4-40 Board Side	Board Lock Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug	0.38 µm	15 µin	Black	Through Hole	2	Solder
EDAC Inc. 627-015-221-278	4-40 Board Side	Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug			Black	Through Hole	2	Solder	Flash
EDAC Inc. 627-015-622-263	4-40 Board Side	Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug	0.76 Ám	30 Áin	Black	Free Hanging (In-Line)	2
EDAC Inc. 627-015-261-276	4-40 Board Side	Board Lock Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug			Black	Through Hole	2	Solder	Flash
EDAC Inc. 627-015-221-253	4-40 Board Side	Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold		D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug			Black	Through Hole	2	Solder	Flash
EDAC Inc. 627-015-241-076	4-40 Board Side	Board Lock Grounding Indents Shielded	2	3 A	Brass	UL94 V-0	Signal	Gold	Nickel Plated Steel	D-Sub	Polyester Thermoplastic	85 °C	-55 °C	15	Male Pins Plug			Black	Through Hole	2	Solder	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	-	1000	$ 2.11

Description

General part information

627-015 Series

15 Position D-Sub Plug, Male Pins Connector
