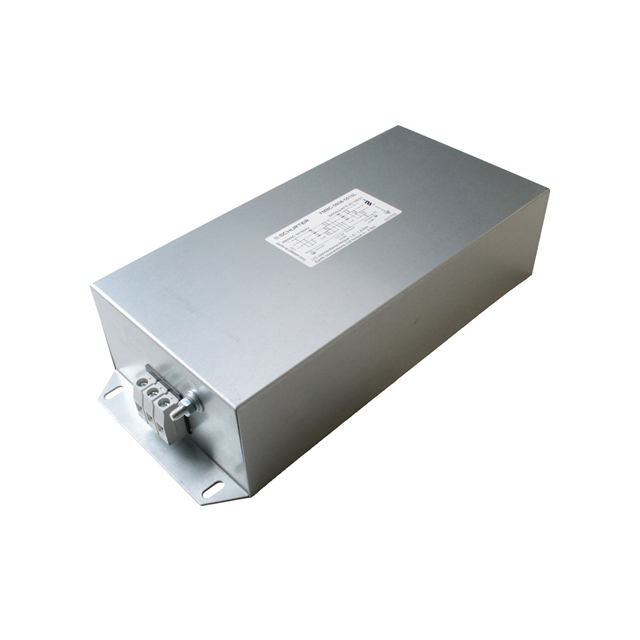

FMBC-0938-5010L
ActiveSCHURTER Inc.
LINE FILTER 480VAC 50A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FMBC-0938-5010L
ActiveSCHURTER Inc.
LINE FILTER 480VAC 50A CHASSIS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | FMBC-0938-5010L | FMBC Series |
|---|---|---|
| Applications | General Purpose | General Purpose, Power Drive Systems, Inverters |
| Approval Agency | cURus, VDE, ENEC | cURus, VDE, ENEC, UL |
| Configuration | Two Stage | Two Stage |
| Current | 50 A | 7 - 230 A |
| Filter Type | Three Phase (Delta) | Three Phase (Delta) |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | 1 mH | 1 - 450 mH |
| Inductance | - | 1.5 - 31 mH |
| Inductance | - | 1.3 - 700 mH |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature | - | 100 °C |
| Operating Temperature | - | -40 °C |
| Operating Temperature [custom] | 100 °C, -25 °C | -25 - 100 °C |
| Termination Style | Terminal Block | Terminal Block |
| Voltage - Rated AC | 480 V | 480 - 760 V |
| Voltage - Rated AC | - | 520 V |
| Voltage - Rated AC | - | 480 V |
FMBC Series
Power Line Filters FMBC Input filter 12A
| Part | Operating Temperature [custom] | Configuration | Termination Style | Mounting Type | Applications | Filter Type | Current | Approval Agency | Voltage - Rated AC | Inductance [custom] | Inductance [custom] | Frequency - Operating [Max] | Frequency - Operating [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Inductance | Voltage - Rated AC [Max] | Voltage - Rated AC [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SCHURTER Inc. FMBC-R91C-1612 | -25 °C, 100 °C | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 16 A | cURus, ENEC, VDE | 520 V | |||||||||
SCHURTER Inc. FMBC-0958-2060 | -25 °C, 100 °C | Two Stage | Terminal Block | Chassis Mount | Inverters, Power Drive Systems | Three Phase (Delta) | 20 A | cURus, ENEC, VDE | 480 V | 2 mH | 1.8 mH | 60 Hz | 50 Hz | |||||
SCHURTER Inc. FMBC-0964-H110 | -25 °C, 100 °C | Two Stage | Terminal Block | Chassis Mount | Inverters, Power Drive Systems | Three Phase (Delta) | 115 A | cURus, ENEC, VDE | 480 V | 60 Hz | 50 Hz | |||||||
SCHURTER Inc. FMBC-395B-3612 | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 36 A | cURus, ENEC, UL, VDE | 520 V | 60 Hz | 50 Hz | 100 °C | -40 °C | ||||||
SCHURTER Inc. FMBC-0938-5010L | -25 °C, 100 °C | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 50 A | cURus, ENEC, VDE | 480 V | 60 Hz | 50 Hz | 1 mH | ||||||
SCHURTER Inc. FMBC-394D-J812 | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 180 A | cURus, ENEC, UL, VDE | 520 V | 60 Hz | 50 Hz | 100 °C | -40 °C | ||||||
SCHURTER Inc. FMBC-395A-2512 | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 25 A | cURus, ENEC, UL, VDE | 520 V | 60 Hz | 50 Hz | 100 °C | -40 °C | ||||||
SCHURTER Inc. FMBC-394C-J112 | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 110 A | cURus, ENEC, UL, VDE | 520 V | 60 Hz | 50 Hz | 100 °C | -40 °C | ||||||
SCHURTER Inc. FMBC-395B-5012 | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 50 A | cURus, ENEC, UL, VDE | 520 V | 60 Hz | 50 Hz | 100 °C | -40 °C | ||||||
SCHURTER Inc. FMBC-394C-8014 | Two Stage | Terminal Block | Chassis Mount | General Purpose | Three Phase (Delta) | 80 A | cURus, ENEC, UL, VDE | 760 V | 60 Hz | 50 Hz | 100 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 498.57 | |
Description
General part information
FMBC Series
Power Line Filters FMBC Input filter 12A
