FMBC-394C-J112

Active

SCHURTER Inc.

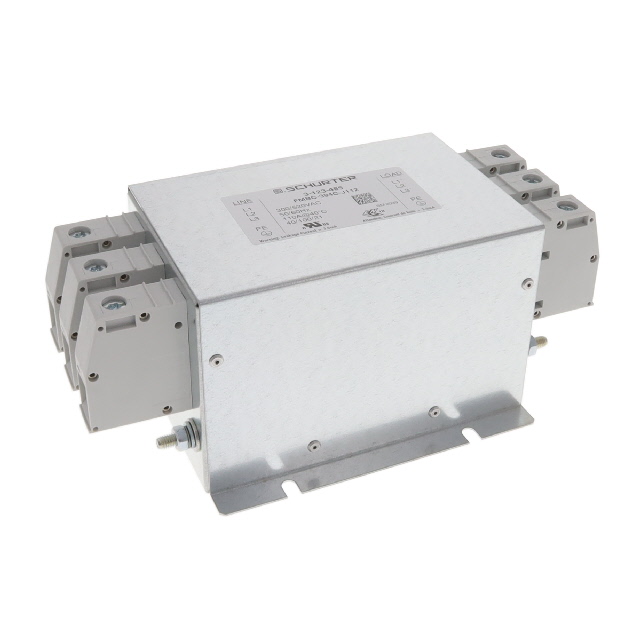

LINE FILTER 520VAC 110A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMBC-394C-J112

Active

SCHURTER Inc.

LINE FILTER 520VAC 110A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMBC-394C-J112	FMBC Series

Applications	General Purpose	General Purpose, Power Drive Systems, Inverters
Approval Agency	UL, ENEC, VDE, cURus	cURus, VDE, ENEC, UL
Configuration	Two Stage	Two Stage
Current	110 A	7 - 230 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	1.5 - 31 mH
Inductance	-	1.3 - 700 mH
Inductance	-	1 - 450 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature	-	-25 - 100 °C
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Terminal Block	Terminal Block
Voltage - Rated AC	520 V	480 - 760 V
Voltage - Rated AC	-	520 V
Voltage - Rated AC	-	480 V

FMBC Series

Power Line Filters FMBC Input filter 12A

Part	Operating Temperature [custom]	Configuration	Termination Style	Mounting Type	Applications	Filter Type	Current	Approval Agency	Voltage - Rated AC	Inductance [custom]	Inductance [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance
SCHURTER Inc. FMBC-R91C-1612	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	16 A	cURus, ENEC, VDE	520 V
SCHURTER Inc. FMBC-0958-2060	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	Inverters, Power Drive Systems	Three Phase (Delta)	20 A	cURus, ENEC, VDE	480 V	2 mH	1.8 mH	60 Hz	50 Hz
SCHURTER Inc. FMBC-0964-H110	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	Inverters, Power Drive Systems	Three Phase (Delta)	115 A	cURus, ENEC, VDE	480 V			60 Hz	50 Hz
SCHURTER Inc. FMBC-395B-3612		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	36 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-0938-5010L	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	50 A	cURus, ENEC, VDE	480 V			60 Hz	50 Hz			1 mH
SCHURTER Inc. FMBC-394D-J812		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	180 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-395A-2512		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	25 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-394C-J112		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	110 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-395B-5012		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	50 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-394C-8014		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	80 A	cURus, ENEC, UL, VDE	760 V			60 Hz	50 Hz	100 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 258.25
		10	$ 249.34
		25	$ 240.44

Description

General part information

FMBC Series

Power Line Filters FMBC Input filter 12A

Documents

Technical documentation and resources
