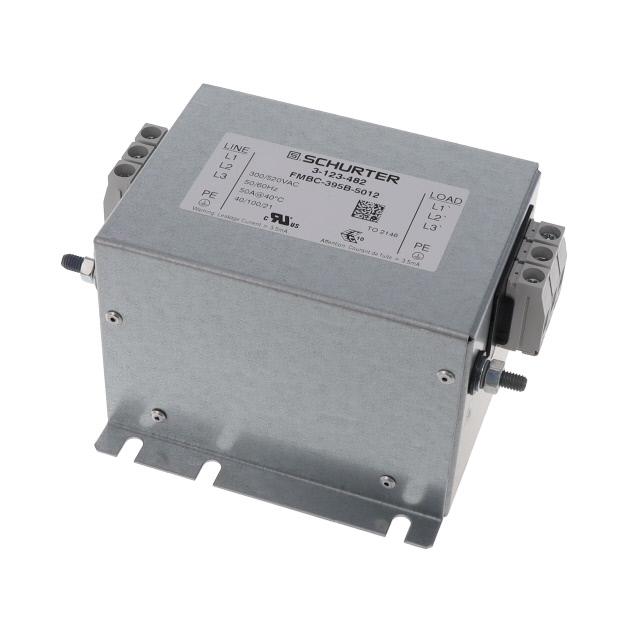

FMBC-395B-5012

Active

SCHURTER Inc.

LINE FILTER 520VAC 50A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMBC-395B-5012

Active

SCHURTER Inc.

LINE FILTER 520VAC 50A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 92.04
		10	$ 80.13

Description

General part information

FMBC Series

Power Line Filters FMBC Input filter 12A

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMBC-395B-5012	FMBC Series

Applications	General Purpose	General Purpose, Power Drive Systems, Inverters
Approval Agency	UL, ENEC, VDE, cURus	cURus, VDE, ENEC, UL
Configuration	Two Stage	Two Stage
Current	50 A	7 - 230 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	-	1.5 - 31 mH
Inductance	-	1.3 - 700 mH
Inductance	-	1 - 450 mH
Mounting Type	Chassis Mount	Chassis Mount
Operating Temperature	-	-25 - 100 °C
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Termination Style	Terminal Block	Terminal Block
Voltage - Rated AC	520 V	480 - 760 V
Voltage - Rated AC	-	520 V
Voltage - Rated AC	-	480 V

FMBC Series

Power Line Filters FMBC Input filter 12A

Part	Operating Temperature [custom]	Configuration	Termination Style	Mounting Type	Applications	Filter Type	Current	Approval Agency	Voltage - Rated AC	Inductance [custom]	Inductance [custom]	Frequency - Operating [Max]	Frequency - Operating [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Inductance
SCHURTER Inc. FMBC-R91C-1612	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	16 A	cURus, ENEC, VDE	520 V
SCHURTER Inc. FMBC-0958-2060	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	Inverters, Power Drive Systems	Three Phase (Delta)	20 A	cURus, ENEC, VDE	480 V	2 mH	1.8 mH	60 Hz	50 Hz
SCHURTER Inc. FMBC-0964-H110	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	Inverters, Power Drive Systems	Three Phase (Delta)	115 A	cURus, ENEC, VDE	480 V			60 Hz	50 Hz
SCHURTER Inc. FMBC-395B-3612		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	36 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-0938-5010L	-25 °C, 100 °C	Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	50 A	cURus, ENEC, VDE	480 V			60 Hz	50 Hz			1 mH
SCHURTER Inc. FMBC-394D-J812		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	180 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-395A-2512		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	25 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-394C-J112		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	110 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-395B-5012		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	50 A	cURus, ENEC, UL, VDE	520 V			60 Hz	50 Hz	100 °C	-40 °C
SCHURTER Inc. FMBC-394C-8014		Two Stage	Terminal Block	Chassis Mount	General Purpose	Three Phase (Delta)	80 A	cURus, ENEC, UL, VDE	760 V			60 Hz	50 Hz	100 °C	-40 °C
