Connectors, Interconnects

307-027-505-168

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTOR

Connectors, Interconnects

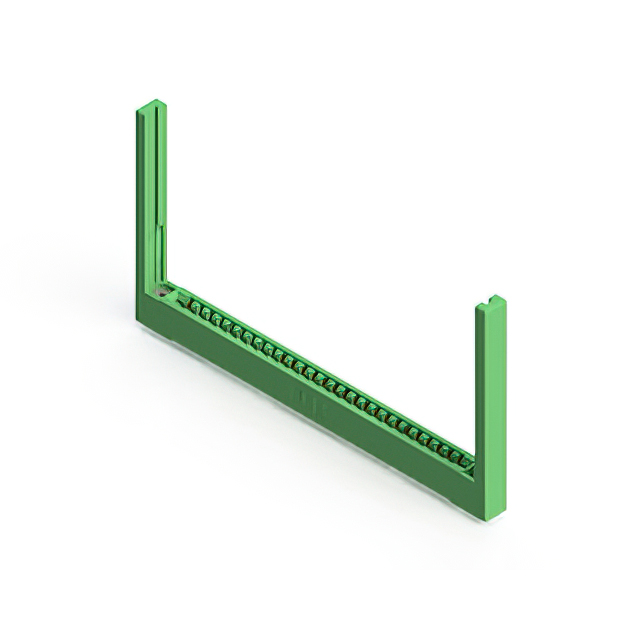

307-027-505-168

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS CARD EDGE CONNECTOR

Specifications Series Pricing CAD Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-027-505-168

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Features	Card Guides
Flange Feature	Flush Mount, Top Opening, Threaded Insert, 4-40
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	27
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.156 in
Read Out	Single
Termination	Solder Eyelet(s)
Termination Rows	1 rows

307 Series

...

Part	Number of Rows	Flange Feature	Operating Temperature (Min)	Operating Temperature (Max)	Card Thickness (Min)	Card Thickness (Max)	Color	Features	Read Out	Contact Finish Thickness	Mounting Type	Pitch	Number of Positions	Contact Material	Card Type	Contact Finish	Gender	Contact Type	Termination	Material - Insulation	Termination Rows	Flange Feature Diameter
EDAC Inc. 307-064-556-278	2	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green	Card Extender Card Guides	Dual	10 Ąin	Board Edge Straddle Mount	0.156 in	32 64	Copper Alloy	Dual Edge Non Specified	Gold	Female	Semi Bellows	Solder	Polyester Thermoplastic	2 rows
EDAC Inc. 307-042-420-203	2	Floating Bobbin Flush Mount	-40 °C	105 °C	0.054 in	0.07 in	Green		Dual		Through Hole	0.156 in	21 42	Copper Alloy	Dual Edge Non Specified	Tin	Female	Semi Bellows	Solder	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 307-040-522-208	2	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green		Dual	10 Ąin	Through Hole	0.156 in	20 40	Copper Alloy	Dual Edge Non Specified	Gold	Female	Semi Bellows	Solder
EDAC Inc. 307-027-505-168	1	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green	Card Guides	Single	10 Ąin	Through Hole	0.156 in	27	Copper Alloy	Non Specified Single Edge	Gold	Female	Semi Bellows	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
EDAC Inc. 307-028-441-158	2	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green	Card Guides	Dual		Through Hole	0.156 in	28 56	Copper Alloy	Dual Edge Non Specified	Tin	Female	Semi Bellows	Wire Wrap	Polyester Thermoplastic	1 rows
EDAC Inc. 307-013-445-103	1	Floating Bobbin Flush Mount	-40 °C	105 °C	0.054 in	0.07 in	Green		Single		Through Hole	0.156 in	13	Copper Alloy	Non Specified Single Edge	Tin	Female	Semi Bellows	Wire Wrap	Polyester Thermoplastic	1 rows	0.116 in
EDAC Inc. 307-020-505-158	1	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green	Card Guides	Single	10 Ąin	Through Hole	0.156 in	20	Copper Alloy	Non Specified Single Edge	Gold	Female	Semi Bellows	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
EDAC Inc. 307-068-460-203	2	Floating Bobbin Flush Mount	-40 °C	105 °C	0.054 in	0.07 in	Green		Dual		Board Edge Straddle Mount	0.156 in	34 68	Copper Alloy	Dual Edge Non Specified	Tin	Female	Semi Bellows	Solder	Polyester Thermoplastic	2 rows	0.116 in
EDAC Inc. 307-036-557-107	2	Flush Mount M3 Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green		Dual	10 Ąin	Right Angle Through Hole	0.156 in	36 72	Copper Alloy	Dual Edge Non Specified	Gold	Female	Semi Bellows	Wire Wrap	Polyester Thermoplastic	1 rows
EDAC Inc. 307-016-554-178	2	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 °C	0.054 in	0.07 in	Green	Card Guides	Dual	10 Ąin	Surface Mount	0.156 in	16 32	Copper Alloy	Dual Edge Non Specified	Gold	Female	Semi Bellows	Solder Eyelet(s)	Polyester Thermoplastic	1 rows
