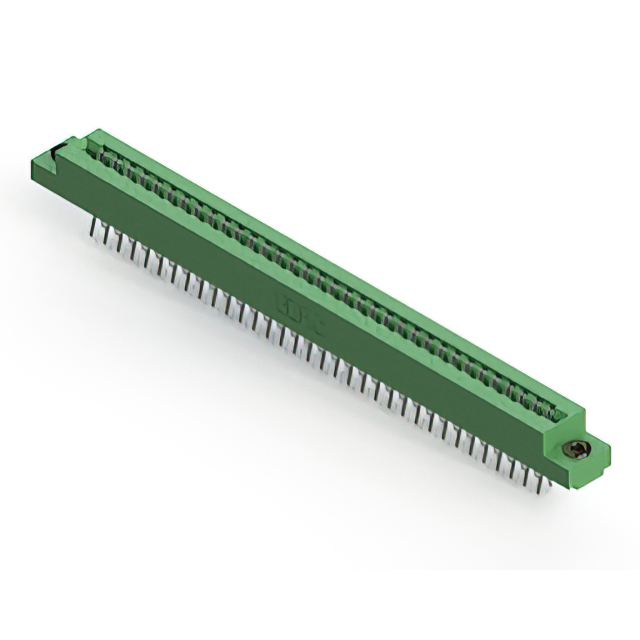

307-068-460-203

Active

EDAC Inc.

3.96MM CLAMP BOARD 68P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

307-068-460-203

Active

EDAC Inc.

3.96MM CLAMP BOARD 68P -40℃~+105℃ P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-068-460-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	68
Number of Positions/Bay/Row [custom]	34
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

307-068 Series

...

Part	Gender	Card Type	Read Out	Features	Termination	Contact Finish	Mounting Type	Color	Contact Material	Flange Feature	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Pitch [x]	Pitch [x]	Material - Insulation	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-068-524-278	Female	Non Specified - Dual Edge	Dual	Card Guides	Solder	Gold	Through Hole	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-460-203	Female	Non Specified - Dual Edge	Dual		Solder	Tin	Board Edge Straddle Mount	Green	Copper Alloy	Floating Bobbin Flush Mount	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	2.95 mm
EDAC Inc. 307-068-442-268	Female	Non Specified - Dual Edge	Dual	Card Guides	Wire Wrap	Tin	Through Hole	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-556-207	Female	Non Specified - Dual Edge	Dual	Card Extender	Solder	Gold	Board Edge Straddle Mount	Green	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	2	10 Áin	0.25 Ám	Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-422-258	Female	Non Specified - Dual Edge	Dual	Card Guides	Solder	Tin	Through Hole	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-455-207	Female	Non Specified - Dual Edge	Dual	Card Extender	Solder Eyelet(s)	Tin	Board Edge Straddle Mount	Green	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-420-203	Female	Non Specified - Dual Edge	Dual		Solder	Tin	Through Hole	Green	Copper Alloy	Floating Bobbin Flush Mount	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in	0.116 in	2.95 mm
EDAC Inc. 307-068-420-201	Female	Non Specified - Dual Edge	Dual		Solder	Tin	Through Hole	Green	Copper Alloy		2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-422-208	Female	Non Specified - Dual Edge	Dual		Solder	Tin	Through Hole	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 307-068-440-258	Female	Non Specified - Dual Edge	Dual	Card Guides	Wire Wrap	Tin	Through Hole	Green	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2			Semi Bellows	0.156 in	3.96 mm	Polyester Thermoplastic	68	-40 °C	105 ░C	34	2	1.37 mm	0.054 "	1.78 mm	0.07 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 20.22
LCSC	Piece	1	$ 13.66
		200	$ 5.29
		500	$ 5.10
		1000	$ 5.01

Description

General part information

307-068 Series

68 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
