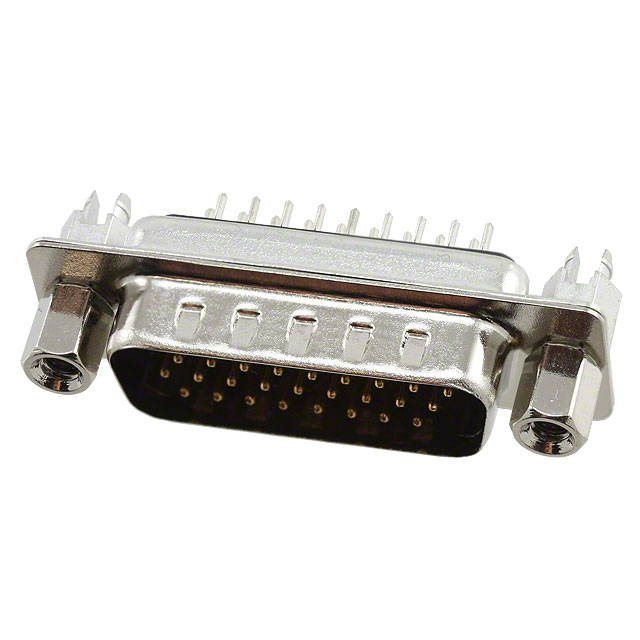

Specification	10090928-P264VLF

Color	Black
Connector Layout	DA, A, High Density
Connector Style	High Density, D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Per Contact)	2.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Finish	Nickel Plated
Flange Feature	Board Side (4-40), Mating Side, Female Screwlock (4-40)
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Material	Steel
Shell Size	2
Termination	Solder
Voltage Rating	250 V

10090928 Series

Part	Features	Number of Positions	Contact Finish Thickness	Connector Style	Flange Feature	Current Rating (Per Contact)	Shell Size	Connector Layout	Mounting Type	Connector Type	Contact Type	Number of Rows	Termination	Material Flammability Rating	Shell Material	Finish	Contact Finish	Voltage Rating	Contact Material	Color	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Current Rating	Contact Finish Thickness (string set options)	Contact Finish Thickness
Amphenol ICC (FCI) 10090928-P786XLF	Board Lock Grounding Indents	78	30 µin	D-Sub High Density	Board Side (4-40)	2.5 A	5	D DD High Density	Through Hole	Male Pins Plug	Signal	4	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic
Amphenol ICC (FCI) 10090928-P266VLF	Board Lock Grounding Indents	26	30 µin	D-Sub High Density	Board Side (4-40) Female Screwlock (4-40) Mating Side	2.5 A	2	A DA High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic
Amphenol ICC (FCI) 10090928-P786VLF	Board Lock Grounding Indents	78	30 µin	D-Sub High Density	Board Side (4-40) Female Screwlock (4-40) Mating Side		5	D DD High Density	Through Hole	Male Pins Plug	Signal	4	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic	2.5 A
Amphenol ICC (FCI) 10090928-H156VLF	Board Lock Grounding Indents	15	30 µin	D-Sub High Density	Board Side (4-40) Female Screwlock (4-40) Mating Side	2.5 A	1	DE E High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Brass	Black	-55 °C	125 °C	Glass Filled Thermoplastic
Amphenol ICC (FCI) 10090928-P156VLF	Board Lock Grounding Indents	15	30 µin	D-Sub High Density	Board Side (4-40) Female Screwlock (4-40) Mating Side	2.5 A	1	DE E High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic
Amphenol ICC (FCI) 10090928-P266XLF	Board Lock Grounding Indents	26	30 µin	D-Sub High Density	Board Side (4-40)	2.5 A	2	A DA High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic
Amphenol ICC (FCI) 10090928-P264XLF	Board Lock Grounding Indents	26	0	D-Sub High Density	Board Side (4-40)	2.5 A	2	A DA High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic		Flash	Flash
Amphenol ICC (FCI) 10090928-P444XLF	Board Lock Grounding Indents	44	0	D-Sub High Density	Board Side (4-40)	2.5 A	3	B DB High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic		Flash	Flash
Amphenol ICC (FCI) 10090928-P154VLF	Board Lock Grounding Indents	15	0	D-Sub High Density	Board Side (4-40) Female Screwlock (4-40) Mating Side	2.5 A	1	DE E High Density	Through Hole	Male Pins Plug	Signal	3	Solder	UL94 V-0	Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic		Flash	Flash
Amphenol ICC (FCI) 10090928-P264VLF	Board Lock Grounding Indents	26	0	D-Sub High Density	Board Side (4-40) Female Screwlock (4-40) Mating Side	2.5 A	2	A DA High Density	Through Hole	Male Pins Plug	Signal	3	Solder		Steel	Nickel Plated	Gold	250 V	Copper Alloy	Black	-55 °C	105 °C	Glass Filled Thermoplastic		Flash	Flash
