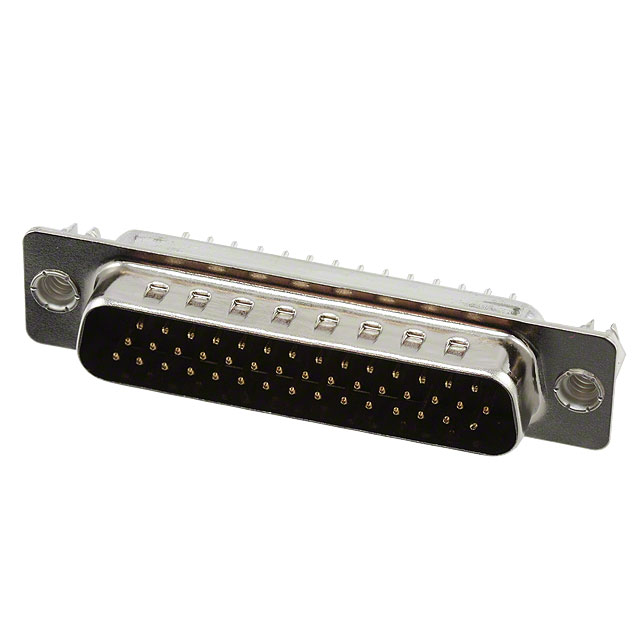

10090928-P444XLF

Active

Amphenol ICC (FCI)

CONN D-SUB HD PLUG 44P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

Documentsd sub productpresentation Other Related Document gs-12-350 Other Related Documents +1

10090928-P444XLF

Active

Amphenol ICC (FCI)

CONN D-SUB HD PLUG 44P VERT SLDR

Deep-Dive with AI

Documentsd sub productpresentation Other Related Document gs-12-350 Other Related Documents +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10090928-P444XLF

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	2.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	44
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	B, DB
Shell Size, Connector Layout [x]	3
Termination	Solder
Voltage Rating	250 VDC

10090928 Series

Part	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Voltage Rating	Flange Feature	Color	Current Rating (Amps)	Contact Type	Number of Positions	Dielectric Material	Contact Finish	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Features	Shell Material, Finish	Material Flammability Rating	Mounting Type	Contact Material	Connector Type	Shell Size, Connector Layout	Shell Size, Connector Layout	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Contact Finish Thickness	Shell Size, Connector Layout [x]
Amphenol ICC (FCI) 10090928-P786XLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	4-40 Board Side	Black	2.5 A	Signal	78	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug
Amphenol ICC (FCI) 10090928-P266VLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	2.5 A	Signal	26	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug	2	(DA A) High Density	3
Amphenol ICC (FCI) 10090928-P786VLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	2.5 A	Signal	78	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug
Amphenol ICC (FCI) 10090928-H156VLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	2.5 A	Signal	15	Thermoplastic Glass Filled	Gold	Solder	125 °C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Brass	Male Pins Plug			3	DE E	1	High Density
Amphenol ICC (FCI) 10090928-P156VLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	2.5 A	Signal	15	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug			3	DE E	1	High Density
Amphenol ICC (FCI) 10090928-P266XLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	4-40 Board Side	Black	2.5 A	Signal	26	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug	2	(DA A) High Density	3
Amphenol ICC (FCI) 10090928-P444XLF	D-Sub High Density			250 VDC	4-40 Board Side	Black	2.5 A	Signal	44	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug			3	B DB			Flash	3
Amphenol ICC (FCI) 10090928-P264VLF	D-Sub High Density			250 VDC	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	2.5 A	Signal	26	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel		Through Hole	Copper Alloy	Male Pins Plug	2	(DA A) High Density	3				Flash
Amphenol ICC (FCI) 10090928-P624VLF	D-Sub High Density			250 VDC	Board Side (4-40) Mating Side Female Screwlock (4-40)	Black	2.5 A	Signal	62	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug	4		3				Flash
Amphenol ICC (FCI) 10090928-P626XLF	D-Sub High Density	0.76 Ám	30 Áin	250 VDC	4-40 Board Side	Black	2.5 A	Signal	62	Thermoplastic Glass Filled	Gold	Solder	105 ░C	-55 °C	Board Lock Grounding Indents	Nickel Plated Steel	UL94 V-0	Through Hole	Copper Alloy	Male Pins Plug	4		3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.00
		10	$ 4.59
		25	$ 4.14
		40	$ 3.93
		80	$ 3.65
		230	$ 3.26
		440	$ 3.05
		945	$ 2.83
		2400	$ 2.70
