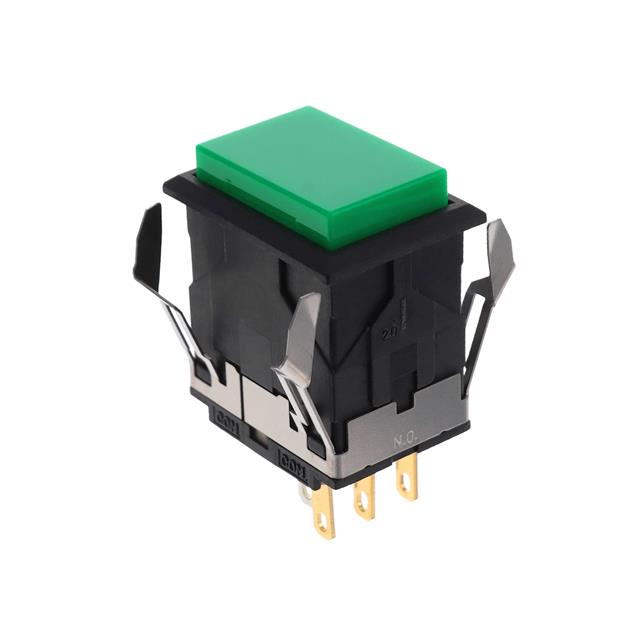

LB15RKG01-F

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LB15RKG01-F

Active

NKK Switches

STANDARD SIZE SNAP-IN PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB15RKG01-F

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	22.4 mm
Panel Cutout Dimensions [y]	16.2 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

LB15RKG01 Series

Part	Voltage Rating - DC	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Circuit	Termination Style	Termination Style	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Actuator Type	Type	Switch Function	Illumination Voltage (Nominal)	Current Rating (Amps)	Electrical Life	Mechanical Life	Mounting Type
NKK Switches LB15RKG01-5D12-JD	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	Amber LED	Rectangular Button	Illuminated Standard	On-Mom	12 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-6B-JD	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	LED White	Rectangular Button	Illuminated Standard	On-Mom	3.3 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-6B-JC	28 V	28 V	No Marking	Clear (Red Filter/Diffuser)	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	LED White	Rectangular Button	Illuminated Standard	On-Mom	3.3 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-5D24-JB	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	Amber LED	Rectangular Button	Illuminated Standard	On-Mom	24 V	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-F	28 V	28 V	No Marking	Green	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	70 °C	-25 °C		Rectangular Button	Standard	On-Mom		0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-5D-JD	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	Amber LED	Rectangular Button	Illuminated Standard	On-Mom	2 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-5D05-JD	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	Amber LED	Rectangular Button	Illuminated Standard	On-Mom	5 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-6F-JB	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	Green LED	Rectangular Button	Illuminated Standard	On-Mom	3.3 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-5F05-JB	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	Green LED	Rectangular Button	Illuminated Standard	On-Mom	5 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In
NKK Switches LB15RKG01-5C05-JB	28 V	28 V	No Marking	Clear	SPDT	0.11 in	Quick Connect Solder	2.8 mm	22.4 mm	16.2 mm	50 °C	-25 °C	LED Red	Rectangular Button	Illuminated Standard	On-Mom	5 VDC	0.4 VA	100000 Cycles	1000000 Cycles	Panel Mount Snap-In

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 13.59
		10	$ 12.28
		25	$ 11.69
		50	$ 11.09
		100	$ 10.70
		250	$ 10.04
		500	$ 9.19
		1000	$ 8.13
Newark	Each	1	$ 25.26
		5	$ 23.99
		10	$ 22.23
		25	$ 20.28
		50	$ 17.55
		100	$ 16.38
		250	$ 14.92

Description

General part information

LB15RKG01 Series

Pushbutton Switch SPDT Standard Panel Mount, Snap-In
