LB15RKG01-5D-JD
ActiveNKK Switches

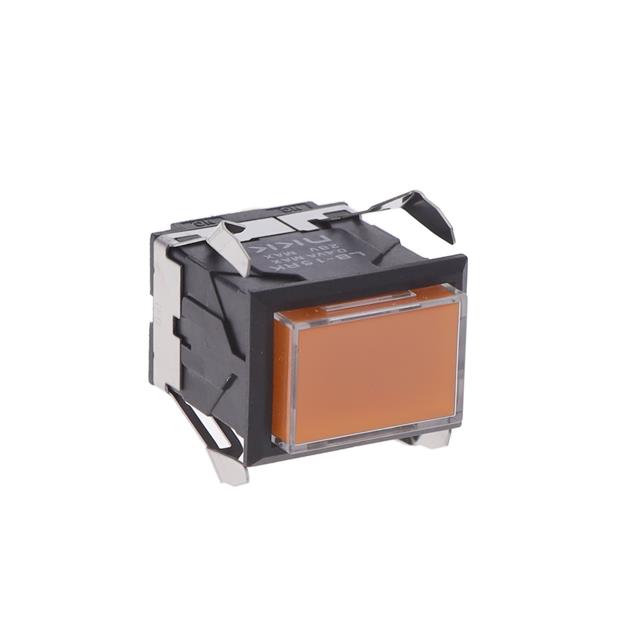

PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-(ON), RECTANGULAR, TRANSPARENT
Deep-Dive with AI
Search across all available documentation for this part.
LB15RKG01-5D-JD
ActiveNKK Switches
PUSHBUTTON SWITCH, LB SERIES, SPDT, ON-(ON), RECTANGULAR, TRANSPARENT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LB15RKG01-5D-JD |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Rectangular, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 100000 Cycles |
| Illumination Type, Color | Amber, LED |
| Illumination Voltage (Nominal) | 2 VDC |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Snap-In |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [x] | 22.4 mm |
| Panel Cutout Dimensions [y] | 16.2 mm |
| Switch Function | On-Mom |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
LB15RKG01 Series
| Part | Voltage Rating - DC | Voltage Rating - AC | Actuator Marking | Color - Actuator/Cap | Circuit | Termination Style | Termination Style | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Actuator Type | Type | Switch Function | Illumination Voltage (Nominal) | Current Rating (Amps) | Electrical Life | Mechanical Life | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | Amber LED | Rectangular Button | Illuminated Standard | On-Mom | 12 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | LED White | Rectangular Button | Illuminated Standard | On-Mom | 3.3 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear (Red Filter/Diffuser) | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | LED White | Rectangular Button | Illuminated Standard | On-Mom | 3.3 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | Amber LED | Rectangular Button | Illuminated Standard | On-Mom | 24 V | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Green | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 70 °C | -25 °C | Rectangular Button | Standard | On-Mom | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In | ||
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | Amber LED | Rectangular Button | Illuminated Standard | On-Mom | 2 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | Amber LED | Rectangular Button | Illuminated Standard | On-Mom | 5 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | Green LED | Rectangular Button | Illuminated Standard | On-Mom | 3.3 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | Green LED | Rectangular Button | Illuminated Standard | On-Mom | 5 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
NKK Switches | 28 V | 28 V | No Marking | Clear | SPDT | 0.11 in | Quick Connect Solder | 2.8 mm | 22.4 mm | 16.2 mm | 50 °C | -25 °C | LED Red | Rectangular Button | Illuminated Standard | On-Mom | 5 VDC | 0.4 VA | 100000 Cycles | 1000000 Cycles | Panel Mount Snap-In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
LB15RKG01 Series
Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In
