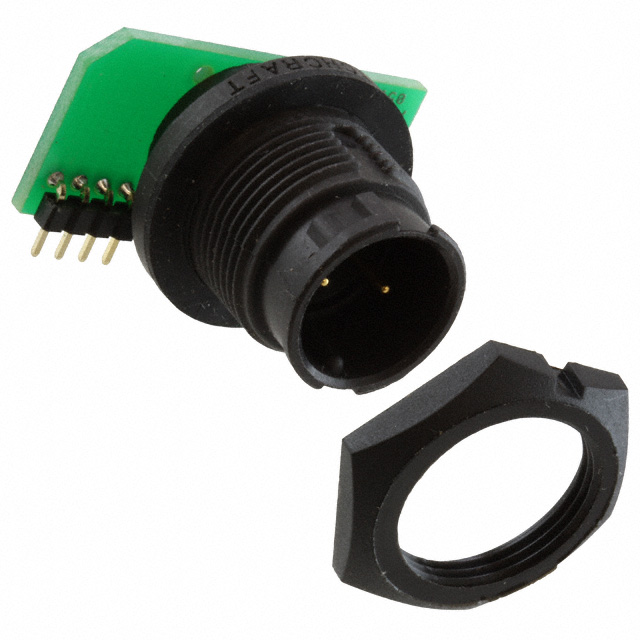

EN3P2MRAPCBW

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P2MRAPCBW

Active

Switchcraft Inc.

CONN RCPT MALE 2POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P2MRAPCBW	EN3P2M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	5 A	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Circuit Board, Solder	Crimp, Solder, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P2M Series

CONN CIRCULAR PIN 2 POS SOLDER CUP ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Part	Current Rating (Amps)	Connector Type	Applications	Contact Finish - Mating	Number of Positions	Fastening Type	Primary Material	Contact Material	Insert Material	Material Flammability Rating	Shielding	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Ingress Protection	Voltage Rating	Termination	Mounting Type
Switchcraft Inc. EN3P2MX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC
Switchcraft Inc. EN3P2M16CX	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Crimp
Switchcraft Inc. EN3P2MRAPCX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P2MPX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Solder	Panel Mount, Through Hole
Switchcraft Inc. EN3P2M16X	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC
Switchcraft Inc. EN3P2M16PX	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Solder	Panel Mount, Through Hole
Switchcraft Inc. EN3P2MRAPCBW	5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P2MRAPCBN	5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P2MCX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Crimp
Switchcraft Inc. EN3P2M16CKX	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.13
		10	$ 13.96
		25	$ 12.63
		50	$ 11.73
		100	$ 10.91
		300	$ 9.77
		500	$ 9.30
		1000	$ 8.79

Description

General part information

EN3P2M Series

2 Position Circular Connector Receptacle, Male Pins Circuit Board, Solder

Documents

Technical documentation and resources
