EN3P2MX

Active

Switchcraft Inc.

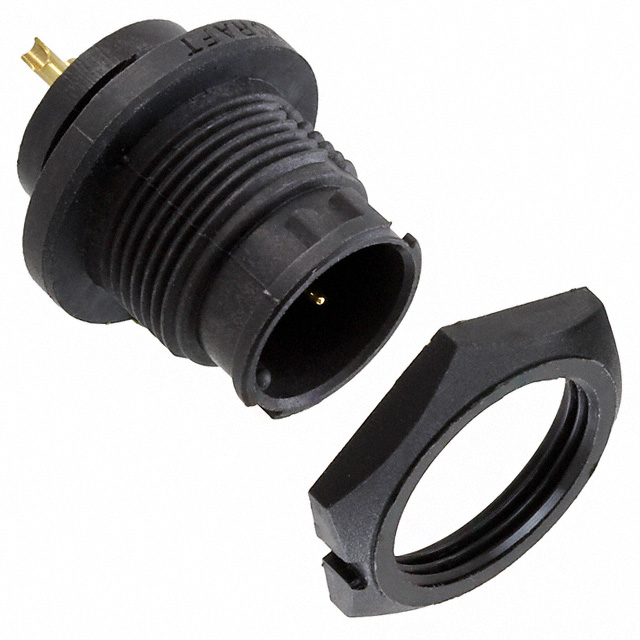

CONN CIRCULAR PIN 2 POS SOLDER CUP ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3P2MX

Active

Switchcraft Inc.

CONN CIRCULAR PIN 2 POS SOLDER CUP ST PANEL MOUNT 2 TERMINAL 1 PORT BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 2.06
		10	$ 2.05
Digikey	Bulk	1	$ 8.64
		10	$ 6.63
		25	$ 5.98
		50	$ 5.54
		100	$ 5.15
		300	$ 4.60
		500	$ 4.37
		1000	$ 4.08
		2500	$ 3.84

Description

General part information

EN3P2M Series

2 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Specification	EN3P2MX	EN3P2M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	-	Through Hole, Right Angle, Panel Mount
Number of Positions	2	2
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp, Solder, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

Part

Current Rating (Amps)

Connector Type

Applications

Contact Finish - Mating

Number of Positions

Fastening Type

Primary Material

Contact Material

Insert Material

Material Flammability Rating

Shielding

Mounting Feature

Operating Temperature [Max]

Operating Temperature [Min]

Orientation

Color

Ingress Protection

Voltage Rating

Termination

Mounting Type

Switchcraft Inc.

EN3P2MX

7.5 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Switchcraft Inc.

EN3P2M16CX

13 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Crimp

Switchcraft Inc.

EN3P2MRAPCX

7.5 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Solder

Panel Mount, Right Angle, Through Hole

Switchcraft Inc.

EN3P2MPX

7.5 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Solder

Panel Mount, Through Hole

Switchcraft Inc.

EN3P2M16X

13 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Switchcraft Inc.

EN3P2M16PX

13 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Solder

Panel Mount, Through Hole

Switchcraft Inc.

EN3P2MRAPCBW

5 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Circuit Board, Solder

Panel Mount, Right Angle, Through Hole

Switchcraft Inc.

EN3P2MRAPCBN

5 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Circuit Board, Solder

Panel Mount, Right Angle, Through Hole

Switchcraft Inc.

EN3P2MCX

7.5 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Crimp

Switchcraft Inc.

EN3P2M16CKX

13 A

Male Pins, Receptacle

General Purpose, Instrumentation, Marine, Medical

Gold

Bayonet Lock

Plastic

Copper Alloy

Elastomer

UL94 V-0

Unshielded

Bulkhead - Front Side Nut

65 °C

-40 °C

Keyed

Black

IP66/IP68

250 VAC

Crimp

Part	Current Rating (Amps)	Connector Type	Applications	Contact Finish - Mating	Number of Positions	Fastening Type	Primary Material	Contact Material	Insert Material	Material Flammability Rating	Shielding	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Color	Ingress Protection	Voltage Rating	Termination	Mounting Type
Switchcraft Inc. EN3P2MX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC
Switchcraft Inc. EN3P2M16CX	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Crimp
Switchcraft Inc. EN3P2MRAPCX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P2MPX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Solder	Panel Mount, Through Hole
Switchcraft Inc. EN3P2M16X	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC
Switchcraft Inc. EN3P2M16PX	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Solder	Panel Mount, Through Hole
Switchcraft Inc. EN3P2MRAPCBW	5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P2MRAPCBN	5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Circuit Board, Solder	Panel Mount, Right Angle, Through Hole
Switchcraft Inc. EN3P2MCX	7.5 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Crimp
Switchcraft Inc. EN3P2M16CKX	13 A	Male Pins, Receptacle	General Purpose, Instrumentation, Marine, Medical	Gold	2	Bayonet Lock	Plastic	Copper Alloy	Elastomer	UL94 V-0	Unshielded	Bulkhead - Front Side Nut	65 °C	-40 °C	Keyed	Black	IP66/IP68	250 VAC	Crimp
