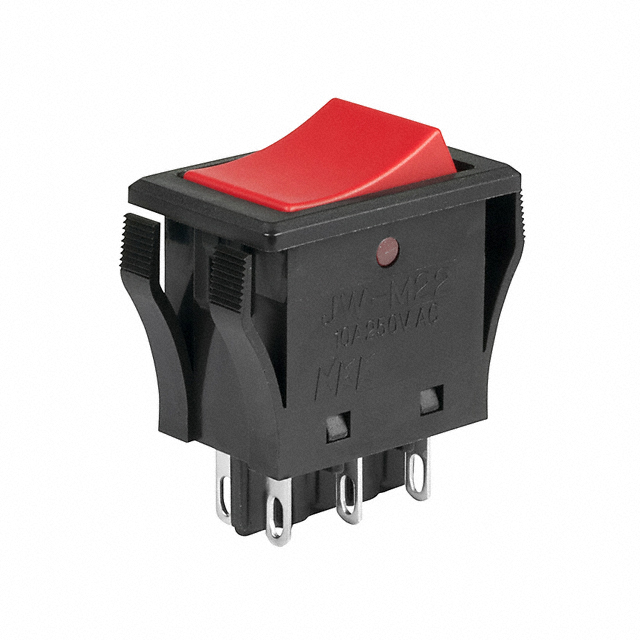

JWM22RCA/UCV

Active

NKK Switches

SWITCH ROCKER DPDT 10A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH ROCKER DPDT 10A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Termination Style	Termination Style	Termination Style	Features	Switch Function	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating - AC	Mounting Type	Approval Agency	Color - Actuator/Cap	Actuator Type	Actuator Marking	Circuit	Current Rating (Amps)	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches JWM22RCA	Dust Proof	0.11 in	Quick Connect Solder	2.8 mm	Epoxy Sealed Terminals	On-On	24 mm	15.4 mm	125 V	Panel Mount Snap-In	CSA UL VDE	Red	Concave (Curved)	No Marking	DPDT	10 A	25000 Steps	25000 Steps	70 °C	-25 °C
NKK Switches JWM22RHH/UCV	Dust Proof	0.11 in	Quick Connect Solder	2.8 mm	Epoxy Sealed Terminals	On-On	24 mm	15.4 mm	125 V	Panel Mount Snap-In	CSA UL VDE		Concave (Curved)	No Marking	DPDT	10 A	25000 Steps	25000 Steps	70 °C	-25 °C
NKK Switches JWM22RCA/UCV	Dust Proof	0.11 in	Quick Connect Solder	2.8 mm	Epoxy Sealed Terminals	On-On	24 mm	15.4 mm	125 V	Panel Mount Snap-In	CSA UL VDE	Red	Concave (Curved)	No Marking	DPDT	10 A	25000 Steps	25000 Steps	70 °C	-25 °C
NKK Switches JWM22RAA/UCV	Dust Proof	0.11 in	Quick Connect Solder	2.8 mm	Epoxy Sealed Terminals	On-On	24 mm	15.4 mm	250 V	Panel Mount Snap-In	CSA UL VDE	Black	Concave (Curved)	No Marking	DPDT	10 A	25000 Steps	25000 Steps	70 °C	-25 °C
NKK Switches JWM22RAA	Dust Proof	0.11 in	Quick Connect Solder	2.8 mm	Epoxy Sealed Terminals	On-On	24 mm	15.4 mm	125 V	Panel Mount Snap-In	CSA UL VDE	Black	Concave (Curved)	No Marking	DPDT	10 A	25000 Steps	25000 Steps	70 °C	-25 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Snap-In
