JWM22RCA - JWM22RCA

JWM22RCA

Active
NKK Switches

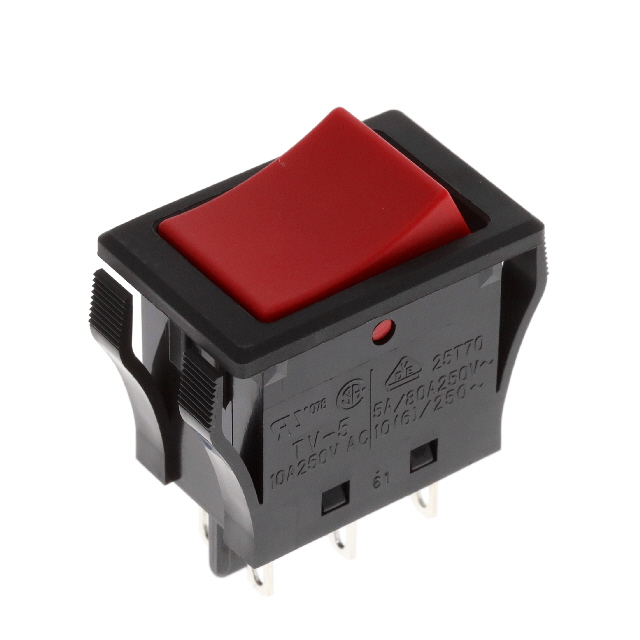

ROCKER SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, PANEL MOUNT, RED, JW SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
JWM22RCA - JWM22RCA

JWM22RCA

Active
NKK Switches

ROCKER SWITCH, ON-NONE-ON, DPDT, NON ILLUMINATED, PANEL MOUNT, RED, JW SERIES

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationJWM22RCA
Actuator MarkingNo Marking
Actuator TypeConcave (Curved)
Approval AgencyUL, VDE, CSA
CircuitDPDT
Color - Actuator/CapRed
Current Rating (Amps)10 A
Electrical Life25000 Steps
FeaturesEpoxy Sealed Terminals
Ingress ProtectionDust Proof
Mechanical Life25000 Steps
Mounting TypePanel Mount, Snap-In
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Panel Cutout Dimensions [x]24 mm
Panel Cutout Dimensions [y]15.4 mm
Switch FunctionOn-On
Termination Style0.11 in
Termination StyleQuick Connect, Solder
Termination Style2.8 mm
Voltage Rating - AC125 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTray 1$ 10.49
10$ 9.45
25$ 9.06
40$ 8.61
80$ 8.26
230$ 7.77
440$ 7.18
945$ 6.93
NewarkEach 1$ 19.63
5$ 18.31
10$ 16.84
25$ 15.37
50$ 13.90
100$ 12.28
250$ 11.03

Description

General part information

JWM22R Series

Rocker Switch DPDT 10A (AC) 125 V Panel Mount, Snap-In
