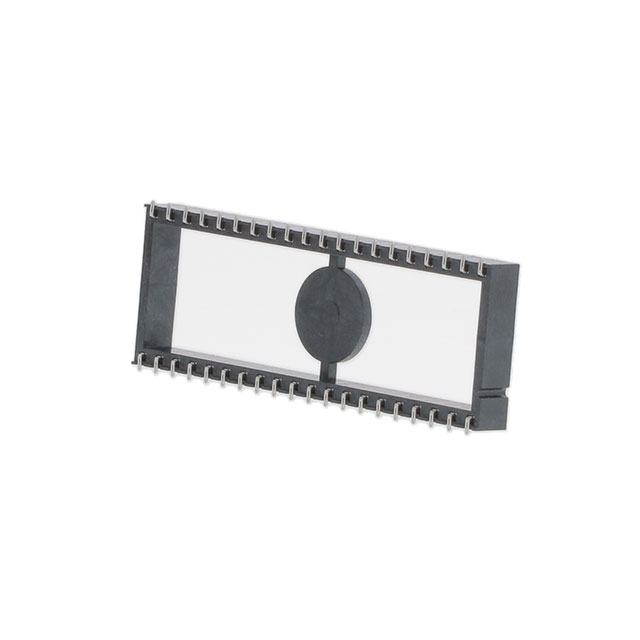

ICF-640-S-O
ActiveSamtec Inc.
CONN IC DIP SOCKET 40POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
ICF-640-S-O
ActiveSamtec Inc.
CONN IC DIP SOCKET 40POS TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ICF-640-S-O |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Features | Open Frame |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount |
| Number of Positions or Pins (Grid) | 40 |
| Number of Positions or Pins (Grid) [custom] | 20 |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | DIP |
| Type | 0.6 in |
| Type | 15.24 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 11.60 | |
| 10 | $ 8.93 | |||
| 25 | $ 8.07 | |||
| 50 | $ 7.83 | |||
Description
General part information
ICF-640 Series
40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Surface Mount
